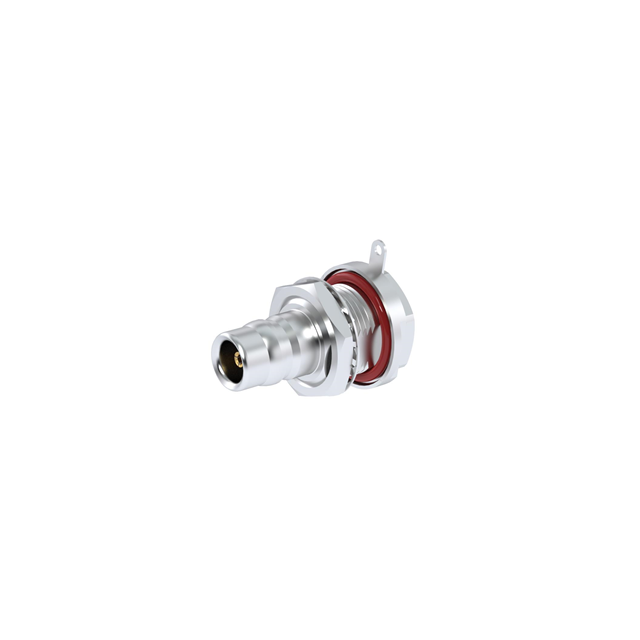

R164606000

Active

Radiall USA, Inc.

QN / STRAIGHT BULKHEAD RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / STRAIGHT BULKHEAD RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	R164606000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Center Contact Plating	Fastening Type	Contact Termination	Shield Termination	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Voltage Rating	Center Contact Material	Body Finish	Connector Type	Ingress Protection	Number of Ports	Impedance	Housing Color	Mating Cycles	Connector Style	Mounting Feature
Radiall USA, Inc. R164606000	Gold	Snap-On	Solder Cup	Solder	Polytetrafluoroethylene (PTFE)	6000 MHz	-55 °C	125 °C	Brass	1000 VDC	Beryllium Copper	White Bronze	Female Socket Receptacle	IP68 - Dust Tight Waterproof	1	50 Ohms	Silver	500	QN	Bulkhead - Front Side Nut
Radiall USA, Inc. R164606000W	Gold	Snap-On	Solder Cup	Solder	Polytetrafluoroethylene (PTFE)	6000 MHz	-55 °C	125 °C	Brass	1000 VDC	Beryllium Copper	White Bronze	Female Socket Receptacle	IP68 - Dust Tight Waterproof	1	50 Ohms	Silver	500	QN	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.22

General part information

QN Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
