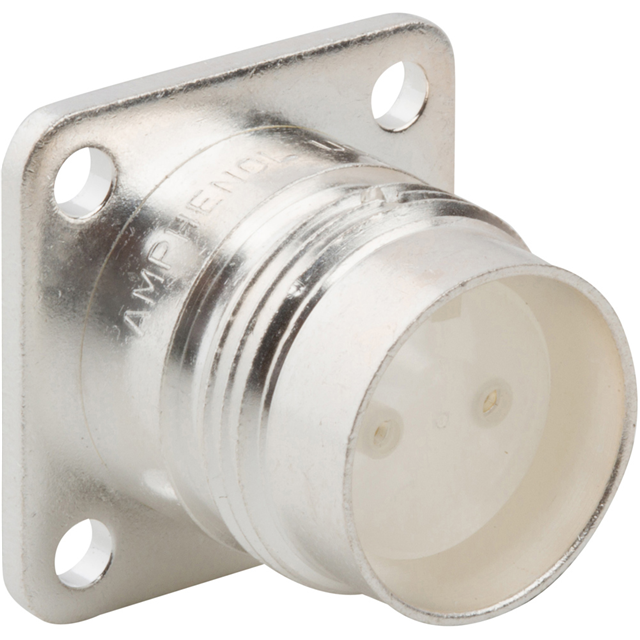

000-6225

Active

AMPHENOL RF

UG-422/U TWINAX STRAIGHT PANEL R

Search across all available documentation for this part.

Active

AMPHENOL RF

UG-422/U TWINAX STRAIGHT PANEL R

Technical Specifications

Parameters and characteristics for this part

UG-422/U TWINAX STRAIGHT PANEL R

Part	Number of Ports	Mating Cycles	Mounting Feature	Center Contact Plating	Housing Color	Impedance	Frequency - Max [Max]	Body Finish	Center Contact Material	Dielectric Material	Contact Termination	Body Material	Connector Style	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
AMPHENOL RF 000-6225	1	500	Flange	Silver	Silver	50 Ohms	200 MHz	Silver	Beryllium Copper	Copolymer	Solder Cup	Brass	Twinaxial	Solder	85 °C	-55 °C	Female Socket, Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 63.30

General part information

Twinaxial Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup

Technical documentation and resources

No documents available
