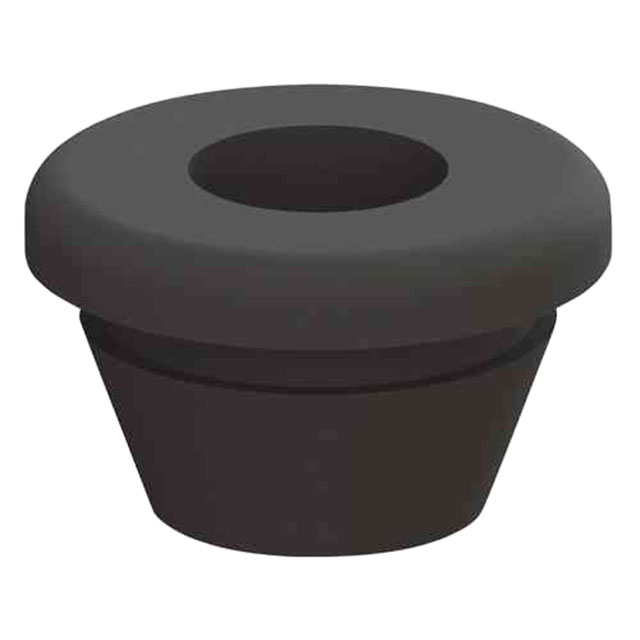

QFG-16228

Active

Essentra Access Solutions

GROMMET, OPEN, 22 MM, ELASTOMER, 26 MM, 3 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, OPEN, 22 MM, ELASTOMER, 26 MM, 3 MM

Technical Specifications

Parameters and characteristics for this part

Specification	QFG-16228

Bushing, Grommet Type	Grommet
Color	Black
Diameter - Inside [diameter]	22.1 mm
Diameter - Inside [diameter]	0.87 "
For Use With/Related Products	Wires, Cable
Material	Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [diameter]	1.02 in
Panel Cutout Dimensions [diameter]	25.91 mm
Panel Thickness [x]	3.05 mm
Panel Thickness [x]	0.12 in

Part	For Use With/Related Products	Bushing, Grommet Type	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material	Material Flammability Rating	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Thickness	Panel Thickness	Color	Panel Thickness [x]	Panel Thickness [x]	Panel Cutout Dimensions	Panel Cutout Dimensions [Min] [diameter]	Panel Cutout Dimensions [Max] [diameter]	Panel Cutout Dimensions [Max] [diameter]	Panel Cutout Dimensions [Min] [diameter]
Essentra Access Solutions QFG-16200	Cable Wires	Grommet	9.91 mm	0.39 in	Thermoplastic Elastomer (TPE)	UL94 HB	6.1 mm	0.24 in	0.06 in	1.52 mm	Black
Essentra Access Solutions QFG-16220	Cable Wires	Grommet	9.91 mm	0.39 in	Thermoplastic Elastomer (TPE)	UL94 HB	6.1 mm	0.24 in			Black	3.05 mm	0.12 in
Essentra Access Solutions QFG-16227	Cable Wires	Grommet	22.1 mm	0.87 in	Poly-Vinyl Chloride (PVC)		18.03 mm	0.71 in			Black	3.05 mm	0.12 in
Essentra Access Solutions QFG-16228	Cable Wires	Grommet	25.91 mm	1.02 in	Thermoplastic Elastomer (TPE)	UL94 HB	22.1 mm	0.87 "			Black	3.05 mm	0.12 in
Essentra Access Solutions QFG-16222	Cable Wires	Grommet		0.47 in	Thermoplastic Elastomer (TPE)	UL94 HB	8.13 mm	0.32 in			Black	3.05 mm	0.12 in	11.94 mm
Essentra Access Solutions QFG-1	Cable Wires	Grommet			Silicone Rubber		13 mm	0.512 in	0.138 in	3.51 mm	Black				18.5 mm	0.787 in	20 mm	0.728 in
Essentra Access Solutions QFG-16221	Cable Wires	Grommet	10.92 mm	0.43 in	Poly-Vinyl Chloride (PVC)		7.11 mm	0.28 in			Black	3.05 mm	0.12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 1.020" (25.91mm) Grommet 0.870" (22.10mm) Black
