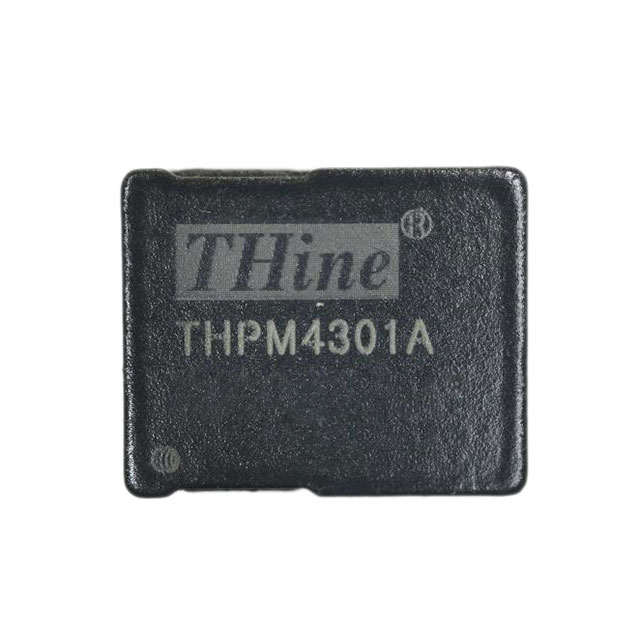

THPM4301A

Active

CEL

DC DC CONVERTER 0.6-3.6V

Search across all available documentation for this part.

Active

CEL

DC DC CONVERTER 0.6-3.6V

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.6-3.6V

Part	Voltage - Input (Max) [Max]	Features	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Supplier Device Package	Mounting Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type
CEL THPM4301A	6 V	Adjustable Output	56-BLGA Module	0.6 V	3.6 V	ITE (Commercial)	6 A	96 %	85 °C	-40 °C	1	56-LGA (11x9.1)	Surface Mount	2.96 V	9.1 mm	0.43 "	0.11 in	11 mm	0.36 "	2.8 mm	Non-Isolated PoL Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 6A 2.96V - 6V Input
