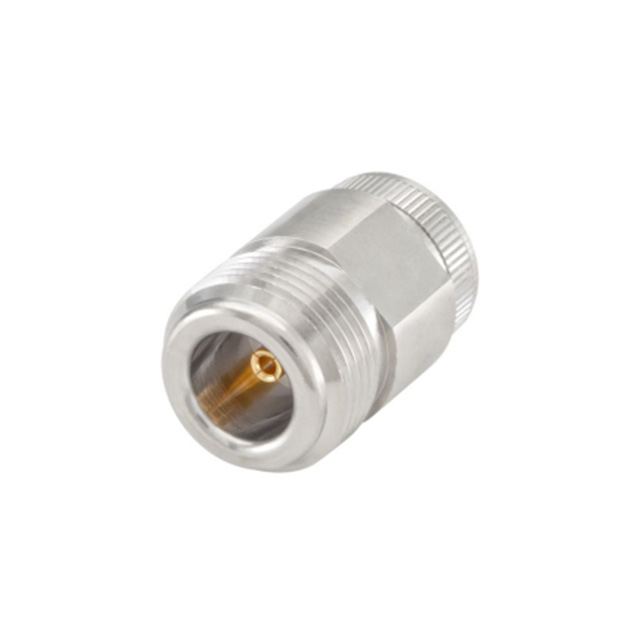

53K505-500N5

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53K505-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Feature	Press Fit (Knurled)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Mating Cycles	Housing Color	Insertion Loss	Body Finish	Number of Ports	Connector Style	Impedance	Voltage Rating	Frequency - Max [Max]	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Material	Shield Termination	Center Contact Plating	Center Contact Material	Contact Termination
Rosenberger 53K505-500N5	Female Socket Jack	500	Silver	0.05 dB	White Bronze	1	N Type	50 Ohms	500 V	11 GHz	Press Fit (Knurled)	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Brass	Solder	Gold	Beryllium Copper	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
