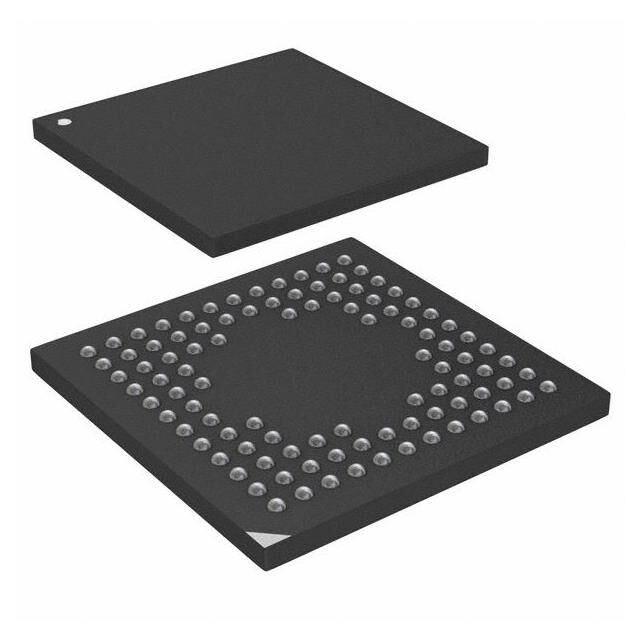

STM32U535VEI3
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 512 KBYTES OF FLASH MEMORY
Deep-Dive with AI
Search across all available documentation for this part.
STM32U535VEI3
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 512 KBYTES OF FLASH MEMORY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32U535VEI3 |
|---|---|
| Connectivity | I2C, SPDIF, LINbus, SmartCard, USB, CANbus, IrDA, UART/USART, SAI, SPI |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Data Converters | D/A 2x12b, A/D 20x12/14b SAR |
| Mounting Type | Surface Mount |
| Number of I/O | 82 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 100-UFBGA |
| Peripherals | Motor Control PWM, PWM, POR, WDT, Brown-out Detect/Reset, DMA |
| Program Memory Size | 512 KB |
| Program Memory Type | FLASH |
| RAM Size | 274 K |
| Speed | 160 MHz |
| Supplier Device Package | 100-UFBGA (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V |
STM32U535CC Series
Ultra-low-power with FPU Arm Cortex-M33 MCU with TrustZone, 160 MHz with 256 Kbytes of Flash memory
| Part | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of I/O | Program Memory Size | RAM Size | Connectivity | Core Processor | Peripherals | Program Memory Type | Mounting Type | Core Size | Package / Case | Oscillator Type | Data Converters | Speed | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 100-LQFP (14x14) | 82 | 256 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 100-LQFP | Internal | A/D 20x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 125 °C | -40 °C | 100-UFBGA (7x7) | 82 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 100-UFBGA | Internal | A/D 20x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 64-LQFP (10x10) | 51 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 64-LQFP | Internal | A/D 17x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 48-UFQFPN (7x7) | 37 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 48-UFQFN Exposed Pad | Internal | A/D 11x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 64-UFBGA (5x5) | 51 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 64-UFBGA | Internal | A/D 17x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 48-UFQFPN (7x7) | 33 I/O | 128 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 48-UFQFN Exposed Pad | Internal | A/D 10x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 100-UFBGA (7x7) | 82 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 100-UFBGA | Internal | A/D 20x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 56-WLCSP | 39 I/O | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 56-UFBGA WLCSP | Internal | A/D 11x12/14b SAR D/A 2x12b | 160 MHz | 3.38 | 3.38 |
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 48-LQFP (7x7) | 37 | 256 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 48-LQFP | Internal | A/D 11x12/14b SAR D/A 2x12b | 160 MHz | ||
STMicroelectronics | 3.6 V | 1.71 V | 85 °C | -40 °C | 100-LQFP (14x14) | 79 | 512 KB | 274 K | CANbus I2C IrDA LINbus SAI SmartCard SPDIF SPI UART/USART USB | ARM® Cortex®-M33 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | FLASH | Surface Mount | 32-Bit | 100-LQFP | Internal | A/D 18x12/14b SAR D/A 2x12b | 160 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.90 | |
| 10 | $ 6.11 | |||
| 25 | $ 5.67 | |||
| 100 | $ 5.18 | |||
| 250 | $ 4.94 | |||
| 500 | $ 4.80 | |||
| 1000 | $ 4.68 | |||
Description
General part information
STM32U535CC Series
The STM32U535xx devices belong to an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.
The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.
The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
