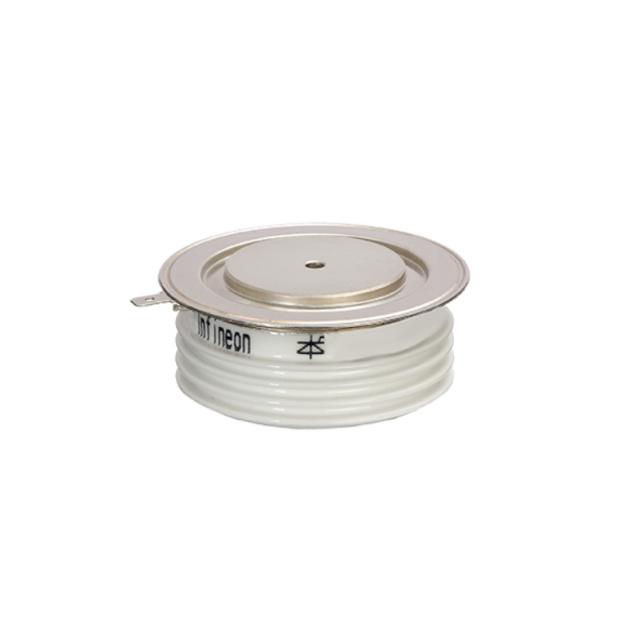

T880N14TOFXPSA1

Active

Infineon Technologies

THYRISTOR PCT 1.4KV 1750A(RMS) 17.5KA 4-PIN T5726K-1 TRAY

Search across all available documentation for this part.

Active

Infineon Technologies

THYRISTOR PCT 1.4KV 1750A(RMS) 17.5KA 4-PIN T5726K-1 TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	T880N14TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	17500 A
Current - On State (It (RMS)) (Max)	1750 A
Mounting Type	Clamp On
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	B-PUK, DO-200AB
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	1.8 kV

Part	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Package / Case
Infineon Technologies T880N14TOFXPSA1	1 SCR	17500 A	Clamp On	Single	-40 °C	120 °C	2.2 V	1.8 kV	1750 A	250 mA	300 mA	B-PUK DO-200AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.8 kV 1750 A Single Clamp On DO-200AB, B-PUK
