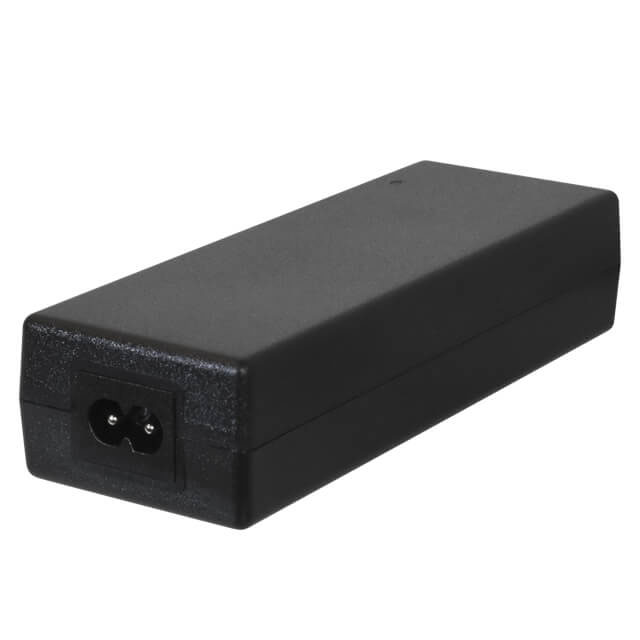

SDI200G-12-UD-P51

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 12V 192W

Deep-Dive with AI

Search across all available documentation for this part.

SDI200G-12-UD-P51

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 12V 192W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI200G-12-UD-P51

Applications	ITE (Commercial)
Approval Agency	UL, EN, FCC, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	16 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	192 W
Region Utilized	International
Size / Dimension [x]	150 mm
Size / Dimension [x]	5.91 "
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Standard Number	61000-3-3, 55032 Class B, 61000-3-2, 62368-1, 55024
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V

SDI200 Series

Part	Current - Output (Max) [Max]	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Output Connector	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Cord Length	Cord Length	Efficiency	Region Utilized	Input Connector	Form	Standard Number	Power (Watts)	Operating Temperature [Max]	Input Type	No Load Power Consumption [Max]	Weight	Weight	Cord Length
CUI Inc. SDI200G-56-U-P51	3.6 A	56 V	240 VAC	100 VAC	4 Pin	Power DIN	EN FCC PSE UL	ITE (Commercial)	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	1.5 m	59 in	Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	202 W	40 °C	Cord
CUI Inc. SDI200G-18-U-P51	11.1 A	18 V	240 VAC	100 VAC	4 Pin	Power DIN	EN FCC PSE UL	ITE (Commercial)	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	1.5 m	59 in	Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	200 W	40 °C	Cord
CUI Inc. SDI200-24-U-P51	8.3 A	24 V	264 VAC	90 VAC	4 Pin	Power DIN	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	81 mm	7.21 in	3.19 in	1.67 in	183.2 mm	42.3 mm		1.5 m	59 in	CoC Tier 2 Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	199 W	40 °C	Cord	150 mW	820 g	1.808 lb
CUI Inc. SDI200-48-U-P51	4.17 A	48 V	264 VAC	90 VAC	4 Pin	Power DIN	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	81 mm	7.21 in	3.19 in	1.67 in	183.2 mm	42.3 mm		1.5 m	59 in	CoC Tier 2 Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	200 W	40 °C	Cord	150 mW	820 g	1.808 lb
CUI Inc. SDI200G-19-U-P51	10.5 A	19 V	240 VAC	100 VAC	4 Pin	Power DIN	EN FCC PSE UL	ITE (Commercial)	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	1.5 m	59 in	Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	200 W	40 °C	Cord
CUI Inc. SDI200-24-U2-P51	8.3 A	24 V	264 VAC	90 VAC	4 Pin	Power DIN	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	81 mm	7.21 in	3.19 in	1.67 in	183.2 mm	42.3 mm		1.5 m	59 in	CoC Tier 2 Level VI	Europe	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	199 W	40 °C	Cord	150 mW	820 g	1.808 lb
CUI Inc. SDI200G-48-U-P51	4.2 A	48 V	240 VAC	100 VAC	4 Pin	Power DIN	EN FCC PSE UL	ITE (Commercial)	54.2 mm	6.34 "	2.13 in	1.31 "	161 mm	33.2 mm	210 mW	1.5 m	59 in	Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	202 W	40 °C	Cord
CUI Inc. SDI200-13.5-UC-P51	14 A	13.5 V	264 VAC	90 VAC	4 Pin	Power DIN	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	81 mm	7.21 in	3.19 in	1.67 in	183.2 mm	42.3 mm	210 mW	47.2 in		CoC Tier 2 Level VI	North America	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	189 W	40 °C	Cord		820 g	1.808 lb	1.2 m
CUI Inc. SDI200-19-U-P51	10.5 A	19 V	264 VAC	90 VAC	4 Pin	Power DIN	CB Scheme CSA EN FCC IEC PSE UL	ITE (Commercial)	81 mm	7.21 in	3.19 in	1.67 in	183.2 mm	42.3 mm	210 mW	1.5 m	59 in	CoC Tier 2 Level VI	International	IEC 320-C14	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	200 W	40 °C	Cord		820 g	1.808 lb
CUI Inc. SDI200G-12-UD-P51	16 A	12 V	240 VAC	100 VAC	4 Pin	Power DIN	EN FCC PSE UL	ITE (Commercial)	54 mm	5.91 "	2.13 in	1.3 "	150 mm	33 mm	210 mW	47.2 in		Level VI	International	IEC 320-C8	Desktop (Class II)	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	192 W	40 °C	Cord				1.2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.50

Description

General part information

SDI200 Series

12V 192 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
