Q-2003I0005048i

Active

Amphenol Custom Cable

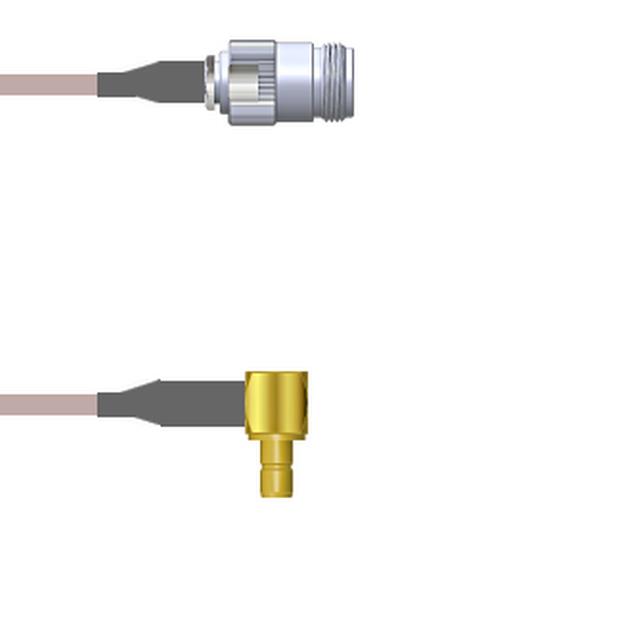

CBL ASSY SMB-NTYPE JACK-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2003I0005048i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2003I0005048i

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2003I0 Series

Part	Style	Frequency - Max [Max]	Length	Length	Length	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	2nd Connector	Cable Type	1st Connector Mounting Type	Color	Features	1st Connector
Amphenol Custom Cable Q-2003I0005084i	SMB to N-Type	4 GHz	84 in	2.1 m	7 ft	Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I00050.5M	SMB to N-Type	4 GHz	19.69 "	50 cm		Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0005048i	SMB to N-Type	4 GHz	48 in	1200 mm	4 ft	Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0005009i	SMB to N-Type	4 GHz	9 "	228.6 mm		Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I00030.5M	SMB to N-Type	4 GHz	19.69 "	50 cm		Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-174	Free Hanging (In-Line)	Black	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0005060i	SMB to N-Type	4 GHz	5 '	1.5 m	5 ft	Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0005036i	SMB to N-Type	4 GHz	36 in	91.44 cm		Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-316	Free Hanging (In-Line)	Copper	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0003.75M	SMB to N-Type	4 GHz	29.53 "	750 mm		Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-174	Free Hanging (In-Line)	Black	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0003002M	SMB to N-Type	4 GHz	78.7 in	2 m	6.6 ft	Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-174	Free Hanging (In-Line)	Black	Shielded	Right Angle SMB Jack
Amphenol Custom Cable Q-2003I0003084i	SMB to N-Type	4 GHz	84 in	2.1 m	7 ft	Female	Male	Free Hanging (In-Line)	50 Ohms	N-Type Jack	RG-174	Free Hanging (In-Line)	Black	Shielded	Right Angle SMB Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.51
		25	$ 89.72
		50	$ 87.93
		100	$ 86.14
		250	$ 84.36

Description

General part information

Q-2003I0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
