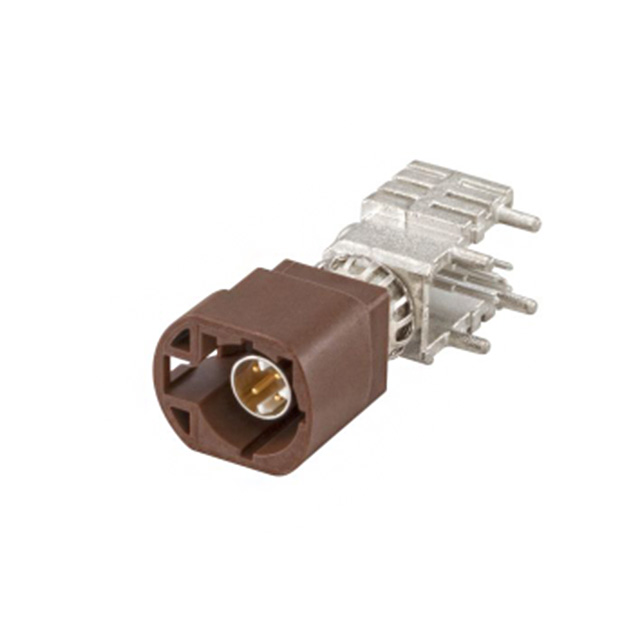

D4S20Y-400A5-F

Active

Rosenberger

CONN HSD FAKRA PLUG R/A 100OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN HSD FAKRA PLUG R/A 100OHM

Technical Specifications

Parameters and characteristics for this part

Part	Shield Termination	Features	Center Contact Material	Body Finish	Center Contact Plating	Impedance	Connector Type	Mating Cycles	Frequency - Max [Max]	Voltage Rating	Dielectric Material	Contact Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Number of Ports	Body Material	Fastening Type	Mounting Type
Rosenberger D4S20Y-400A5-F	Solder	Code F	Bronze	Nickel	Gold	100 Ohms	Male Pin Plug	25	2 GHz	100 V	Liquid Crystal Polymer (LCP)	Solder	Fakra HSD® Quadraxial	-40 °C	105 ░C	Brown	1	Brass	Latch Lock	Through Hole Right Angle
Rosenberger D4S20Y-40MA5-B	Solder	Code B	Bronze	Nickel	Gold	100 Ohms	Male Pin Plug	25	2 GHz	100 V	Liquid Crystal Polymer (LCP)	Solder	Fakra HSD® Quadraxial	-40 °C	105 ░C	White	1	Brass	Latch Lock	Through Hole Right Angle
Rosenberger D4S20Y-40MA5-A	Solder	Code A	Bronze	Nickel	Gold	100 Ohms	Male Pin Plug	25	2 GHz	100 V	Liquid Crystal Polymer (LCP)	Solder	Fakra HSD® Quadraxial	-40 °C	105 ░C	Black	1	Brass	Latch Lock	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
