MS3114E14-19P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3114E14-19P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3114E14-19P | MS3114E14 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 19 | 12 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy, Aluminum |
| Shell Size - Insert | - | 14-12, 14-5 |
| Shell Size - Insert [Max] [custom] | 19 | 19 |
| Shell Size - Insert [Min] [custom] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 66.14 | |
| 10 | $ 60.69 | |||
| 25 | $ 58.36 | |||
| 50 | $ 56.41 | |||
| 100 | $ 53.30 | |||
MS3114E14 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Insert Material | Qualification | Number of Positions | Connector Type | Voltage Rating | Grade | Contact Finish - Mating | Shell Material | Color | Contact Material | Current Rating (Amps) | Mounting Feature | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Orientation | Applications | Shell Finish | Primary Material | Shell Size - Insert | Ingress Protection | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Features | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3114E14-12P | Neoprene | MIL-DTL-26482 Series I | 12 | Male Pins, Receptacle | 600 VAC | Military | Gold | Aluminum Alloy | Olive Drab | Copper Alloy | 7.5 A, 13 A | Bulkhead - Front Side Nut | Unshielded | -55 °C | 125 °C | Bayonet Lock | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Metal | 14-12 | Environment Resistant | ||||
Amphenol Industrial Operations MS3114E14-19P | Neoprene | MIL-DTL-26482 Series I | 19 | Male Pins, Receptacle | 600 VAC | Military | Gold | Aluminum Alloy | Olive Drab | Copper Alloy | 7.5 A | Bulkhead - Front Side Nut | Unshielded | -55 °C | 125 °C | Bayonet Lock | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Metal | Environment Resistant | 19 | 14 | |||
Amphenol Industrial Operations MS3114E14-5P | Neoprene | MIL-DTL-26482 Series I | Male Pins, Receptacle | Military | Gold | Aluminum | Olive Drab | Copper Alloy | Bulkhead - Front Side Nut | Unshielded | -55 °C | 125 °C | Bayonet Lock | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Metal | 14-5 | Environment Resistant | Backshell | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3114E14 Series

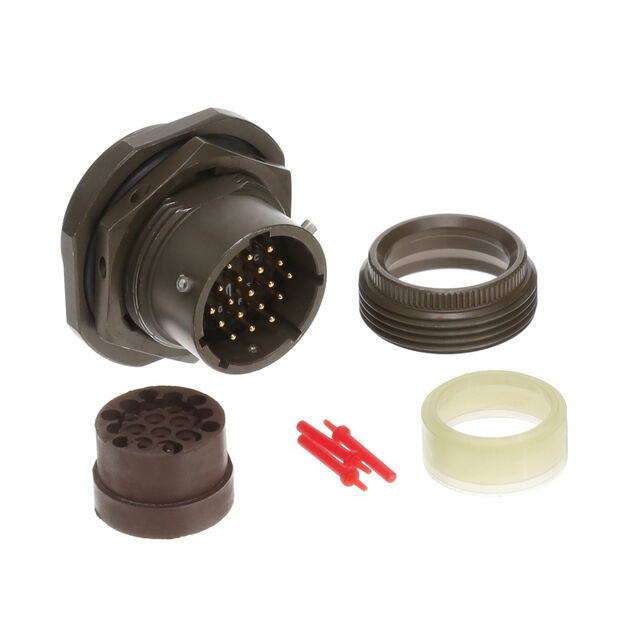

19 Position Circular Connector Receptacle, Male Pins Solder Cup
