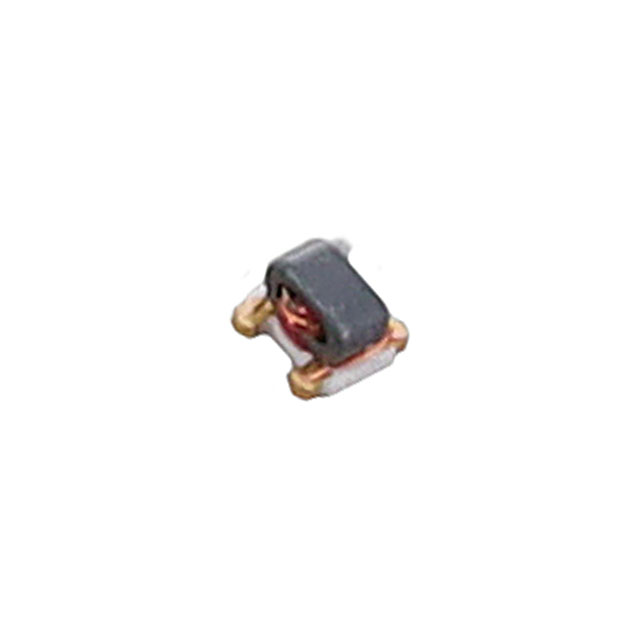

MABA-009488-61HWCA
ActiveMACOM Technology Solutions
E-SERIES FLUX 1:4 TRANSFORMER 2-
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MABA-009488-61HWCA
ActiveMACOM Technology Solutions
E-SERIES FLUX 1:4 TRANSFORMER 2-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MABA-009488-61HWCA |
|---|---|
| Frequency Range [Max] | 800 MHz |
| Frequency Range [Min] | 3 MHz |
| Impedance - Unbalanced/Balanced | 1:4 |
| Insertion Loss (Max) | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Return Loss (Min) [Min] | 10 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.03 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.22 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 2.03 | ||
| 10 | $ 1.62 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.22 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.07 | |||
| Tape & Reel (TR) | 2000 | $ 0.84 | ||
Description
General part information
MABA-009488 Series
RF Balun 3MHz ~ 800MHz 1:4 6-SMD (5 Leads), Flat Lead
