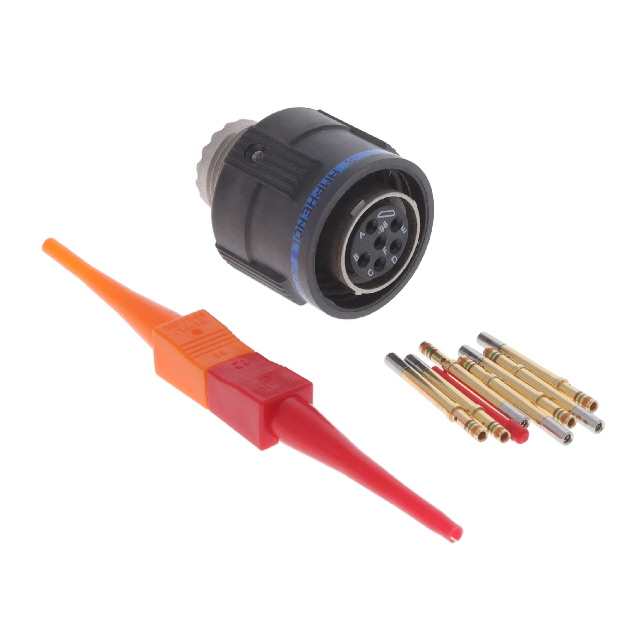

D38999/26MB98SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26MB98SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26MB98SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert	11-98
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

D38999/26MB Series

Part	Orientation	Connector Type	Shielding	Number of Positions	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type	Ingress Protection	Contact Size	Shell Size - Insert	Shell Material	Type	Qualification	Contact Shape	Shell Size, MIL	Grade	Shell Finish	Mounting Type	Features	Primary Material	Color	Applications	Contact Material	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Aerospace Operations D38999/26MB2BA	A	Plug Housing	Shielded	2	Silver	-65 ░C	200 °C	Contacts Not Included	Crimp	Environment Resistant	16	11-2	Composite	For Female Sockets	MIL-DTL-38999 Series III	Circular	B	Military	Electroless Nickel	Free Hanging (In-Line)
Amphenol Aerospace Operations D38999/26MB98JN-LC	N	Plug Housing	Shielded	6	Silver	-65 ░C	200 °C	Contacts Not Included	Crimp	Environment Resistant	20	11-98	Composite	For Female Sockets	MIL-DTL-38999 Series III	Circular	B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut Self Locking
Amphenol Aerospace Operations D38999/26MB5HA	A	Male Pins Plug	Shielded			-65 ░C	200 °C			Environment Resistant		11-5	Composite		MIL-DTL-38999 Series III		B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut	Composite	Silver	Aerospace Aviation Military	Copper Alloy	Gold	Crimp	2.54 çm	100 çin
Amphenol Aerospace Operations D38999/26MB2JA-LC	A	Plug Housing	Shielded	2	Silver	-65 ░C	200 °C	Contacts Not Included	Crimp	Environment Resistant	16	11-2	Composite	For Female Sockets	MIL-DTL-38999 Series III	Circular	B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut Self Locking
Amphenol Aerospace Operations D38999/26MB35PN	N	Male Pins Plug	Shielded	13		-65 ░C	200 °C			Environment Resistant			Composite		MIL-DTL-38999 Series III		B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut	Composite	Silver	Aerospace Aviation Marine Military	Copper Alloy	Gold	Crimp	1.27 µm	50 µin	11	35
Amphenol Aerospace Operations D38999/26MB2SA-LC	A	Plug Housing	Shielded	2	Silver	-65 ░C	200 °C	Contacts Not Included	Crimp	Environment Resistant	16	11-2	Composite	For Female Sockets	MIL-DTL-38999 Series III	Circular	B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut Self Locking
Amphenol Aerospace Operations D38999/26MB5SA	A	Female Sockets Plug	Shielded			-65 ░C	200 °C			Environment Resistant		11-5	Composite		MIL-DTL-38999 Series III		B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut	Composite	Silver	Aerospace Aviation Military	Copper Alloy	Gold	Crimp	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26MB98BA	A	Plug Housing	Shielded	6	Silver	-65 ░C	200 °C	Contacts Not Included	Crimp	Environment Resistant	20	11-98	Composite	For Female Sockets	MIL-DTL-38999 Series III	Circular	B	Military	Electroless Nickel	Free Hanging (In-Line)
Amphenol Aerospace Operations D38999/26MB98SN	N	Female Sockets Plug	Shielded	6		-65 ░C	200 °C			Environment Resistant		11-98	Composite		MIL-DTL-38999 Series III		B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut	Composite	Silver	Aerospace Aviation Marine Military	Copper Alloy	Gold	Crimp	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26MB35JB	B	Female Sockets Plug	Shielded	13		-65 ░C	200 °C			Environment Resistant			Composite		MIL-DTL-38999 Series III		B	Military	Electroless Nickel	Free Hanging (In-Line)	Coupling Nut	Composite	Silver	Aerospace Aviation Military	Copper Alloy	Gold	Crimp	2.54 çm	100 çin	11	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.81
		10	$ 91.59
		100	$ 80.43

Description

General part information

D38999/26MB Series

6 Position Circular Connector Plug, Female Sockets Crimp
