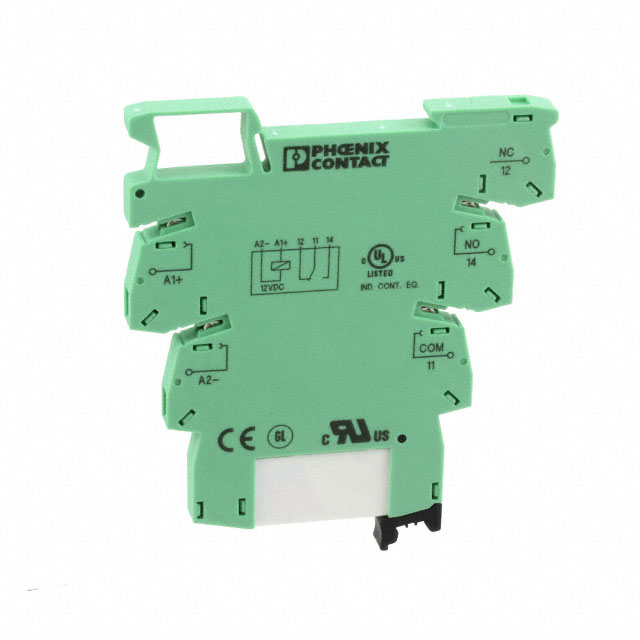

2967442

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 50MA 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) DIN Rail

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2967442	29674 Series

Coil Current	15.3 mA	3.2 - 15.3 mA
Coil Resistance	784 Ohms	71.88 - 784 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 230 VAC
Contact Form	SPDT (1 Form C)	SPST-NO (1 Form A), SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)	Gold (Au), Silver Tin Oxide (AgSnO), Silver (Ag)
Contact Rating (Current)	50 mA	6 - 50 mA
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	5 ms	5 - 7 ms
Operating Temperature [Max]	60 °C	55 - 60 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 - 15 ms
Switching Voltage	36 VDC, 30 VAC	30 - 250 VAC
Termination Style	Spring Terminal	Spring Terminal

RELAY GEN PURPOSE SPST 50MA 230V

Part	Termination Style	Features	Contact Material	Contact Form	Switching Voltage	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Coil Resistance	Release Time	Coil Current	Mounting Type	Operate Time	Relay Type	Coil Type
Phoenix Contact 2967413	Spring Terminal	Lighted Indicator, Socket Included	Gold (Au), Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	30 VAC, 30 VDC	230 VAC	-40 °C	55 °C	50 mA	71.88 kOhms	15 ms	3.2 mA	DIN Rail	7 ms	General Purpose	Non Latching
Phoenix Contact 2967442	Spring Terminal	Lighted Indicator, Socket Included	Gold (Au), Silver (Ag)	SPDT (1 Form C)	30 VAC, 36 VDC	12 VDC	-25 °C	60 °C	50 mA	784 Ohms	8 ms	15.3 mA	DIN Rail	5 ms	General Purpose	Non Latching
Phoenix Contact 2967439	Spring Terminal	Lighted Indicator, Socket Included	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	250 VAC, 250 VDC	12 VDC	-25 °C	60 °C	6 A	784 Ohms	8 ms	15.3 mA	DIN Rail	5 ms	General Purpose	Non Latching
