AP-CCWWG-Q-S22222-RP34-BL

Active

NimbeLink, LLC

ANTENNA PLUS ULTRAMAX MIMO ANTEN

Search across all available documentation for this part.

Active

NimbeLink, LLC

ANTENNA PLUS ULTRAMAX MIMO ANTEN

Technical Specifications

Parameters and characteristics for this part

Specification	AP-CCWWG-Q-S22222-RP34-BL

Antenna Type	Module
Applications	Galileo, GNSS, Wi-Fi, GPS, Beidou, LTE, GLONASS
Features	Cable - 4.572m
Frequency (Center/Band)	2.2 GHz, 1.58 GHz, 2.4 GHz, 829 MHz, 5.45 GHz
Frequency Group	Wide Band
Frequency Range [Max]	1.61 GHz, 2.7 GHz, 6 GHz, 960 MHz
Frequency Range [Min]	4.9 GHz, 1550 MHz, 698 MHz, 1.7 GHz
Height (Max)	56.4 mm
Height (Max) [Max]	2.22 in
Number of Bands [custom]	5
RF Family/Standard	Navigation, WiFi, Cellular
Termination	RP-SMA Male (1), SMA Male (2)

ANTENNA PLUS ULTRAMAX MIMO ANTEN

Part	Termination	RF Family/Standard	Applications	Number of Bands [custom]	Height (Max) [Max]	Height (Max)	Features	Frequency (Center/Band)	Frequency Group	Antenna Type	Frequency Range [Max]	Frequency Range [Min]
NimbeLink, LLC AP-CCWWG-Q-S22222-RP34-BL	RP-SMA Male (1), SMA Male (2)	Cellular, Navigation, WiFi	Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi	5	2.22 in	56.4 mm	Cable - 4.572m	1.58 GHz, 2.2 GHz, 2.4 GHz, 5.45 GHz, 829 MHz	Wide Band	Module	1.61 GHz, 2.7 GHz, 6 GHz, 960 MHz	1.7 GHz, 4.9 GHz, 698 MHz, 1550 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 410.41

General part information

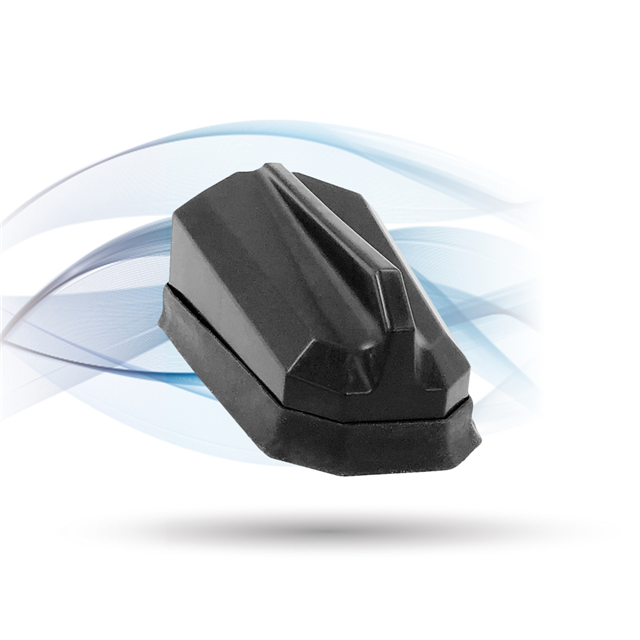

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi Module RP-SMA Male (1), SMA Male (2) Panel Mount
