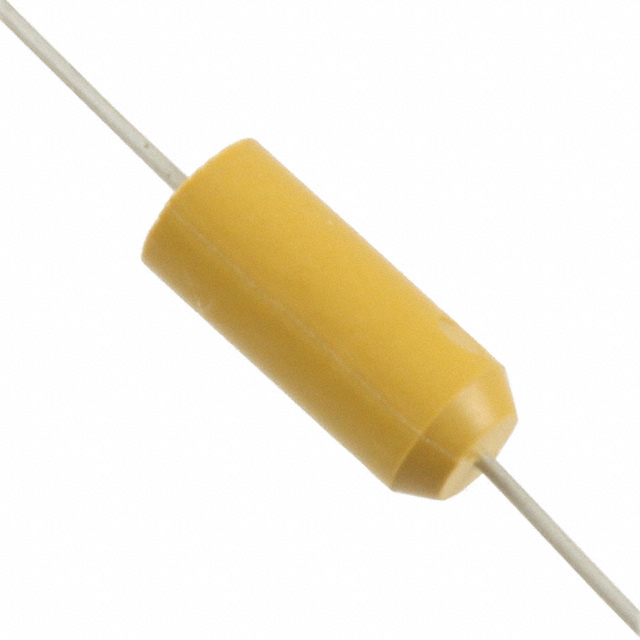

T322D475K050AS

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 4.7UF, THROUGH HOLE MOUNT, AXIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_T2039_T322_AXIAL_T323.pdf Datasheet +1

T322D475K050AS

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 4.7UF, THROUGH HOLE MOUNT, AXIAL LEADED

Deep-Dive with AI

DocumentsKEM_T2039_T322_AXIAL_T323.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T322D475K050AS

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	2.5 Ohm
Features	General Purpose
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.18 in
Size / Dimension [diameter]	4.57 mm
Size / Dimension [x]	10.67 mm
Size / Dimension [x]	0.42 in
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

T322D Series

Part	Mounting Type	Features	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated	Capacitance	Tolerance	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [diameter]
KEMET T322D156K025AS	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	25 VDC	15 µF	10 %	Molded	Axial	-55 °C	125 °C	D	2 Ohms
KEMET T322D476K006AT	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	6 VDC	47 µF	10 %	Molded	Axial	-55 °C	125 °C	D	2 Ohms
KEMET T322D685K035AT	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	35 V	6.8 ÁF	10 %	Molded	Axial	-55 °C	125 °C	D	2.5 Ohm
KEMET T322D336K010AT	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	10 V	33 ÁF	10 %	Molded	Axial	-55 °C	125 °C	D	2.1 Ohm
KEMET T322D156M020AT	Through Hole	General Purpose		4.57 mm	4.57 mm		20 V	15 µF	20 %	Molded	Axial	-55 °C	125 °C	D	2.3 Ohm	0.18 "	0.18 "
KEMET T322D106K035AS	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	35 V	10 µF	10 %	Molded	Axial	-55 °C	125 °C	D	2 Ohms
KEMET T322D226K020AT	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	20 V	22 µF	10 %	Molded	Axial	-55 °C	125 °C	D	1.8 Ohm
KEMET T322D106M035AS	Through Hole	General Purpose		4.57 mm	4.57 mm		35 V	10 µF	20 %	Molded	Axial	-55 °C	125 °C	D	2 Ohm	0.18 "	0.18 "
KEMET T322D475K050AS	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	50 VDC	4.7 µF	10 %	Molded	Axial	-55 °C	125 °C	D	2.5 Ohm
KEMET T322D475K050AT	Through Hole	General Purpose	0.18 in	10.67 mm	4.57 mm	0.42 in	50 VDC	4.7 µF	10 %	Molded	Axial	-55 °C	125 °C	D	2.5 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.05
		10	$ 7.80
		50	$ 6.48
		100	$ 6.07
		500	$ 5.37
		1000	$ 5.15

Description

General part information

T322D Series

4.7 µF Molded Tantalum Capacitors 50 V Axial 2.5Ohm

Documents

Technical documentation and resources

KEM_T2039_T322_AXIAL_T323.pdf

Datasheet
