1411001-1

Active

TE Connectivity AMP Connectors

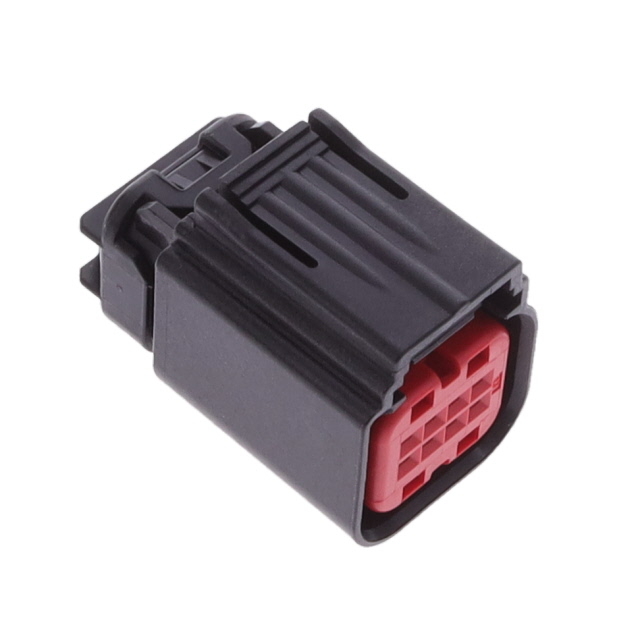

CONN PLUG HSG 8POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1411001-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed, IP67, Terminal Position Assurance (TPA)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	5.51 mm
Row Spacing [x]	0.217 in

CONN PLUG HSG 8POS 2.54MM

Part	Fastening Type	Contact Type	Features	Number of Rows	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Note	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Insulation Material	Contact Termination	Mounting Type
TE Connectivity AMP Connectors 1411001-1	Latch Holder	Female Socket	IP67, Sealed, Terminal Position Assurance (TPA)	2	0.217 in	5.51 mm	2.54 mm	0.1 in	Contacts Not Included	Black	125 °C	-40 °C	Plug	8	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
