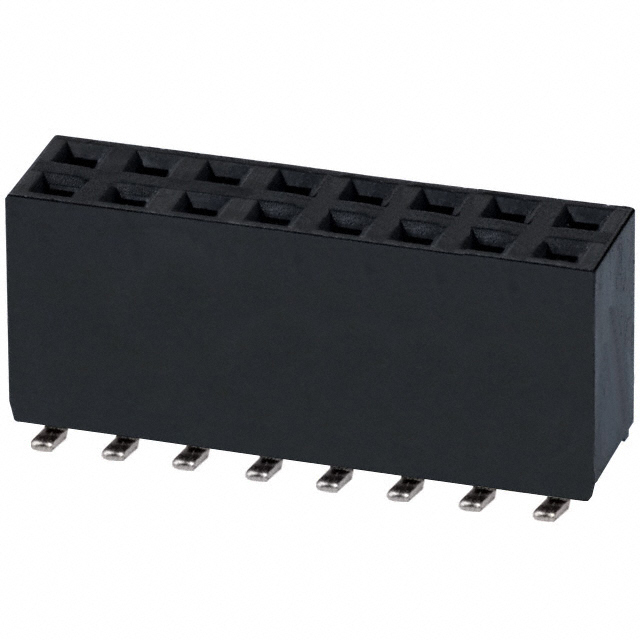

NPTC082KFMS-RC

Active

Sullins Connector Solutions

CONN HDR 16POS 0.1 TIN SMD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 16POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NPTC082KFMS-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Material Flammability Rating	Contact Finish - Post	Mounting Type	Contact Type	Insulation Height	Insulation Height	Number of Positions	Connector Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Shape	Number of Rows	Fastening Type	Termination	Current Rating (Amps)	Features
Sullins Connector Solutions NPTC082KFMS-RC	Phosphor Bronze	125 °C	-40 °C	All	0.1 in	2.54 mm	250 VDC	UL94 V-0	Tin	Surface Mount	Female Socket	0.299 in	7.6 mm	16	Header	Nylon 6T Polyamide (PA6T)	2.54 mm	0.1 in	Black	Square	2	Push-Pull	Solder	3 A
Sullins Connector Solutions NPTC082KFMP-RC	Phosphor Bronze	125 °C	-40 °C	All	0.1 in	2.54 mm	250 VDC	UL94 V-0	Tin	Surface Mount	Female Socket	0.299 in	7.6 mm	16	Header	Nylon 6T Polyamide (PA6T)	2.54 mm	0.1 in	Black	Square	2	Push-Pull	Solder	3 A	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Header Connector 0.100" (2.54mm) Surface Mount Tin
