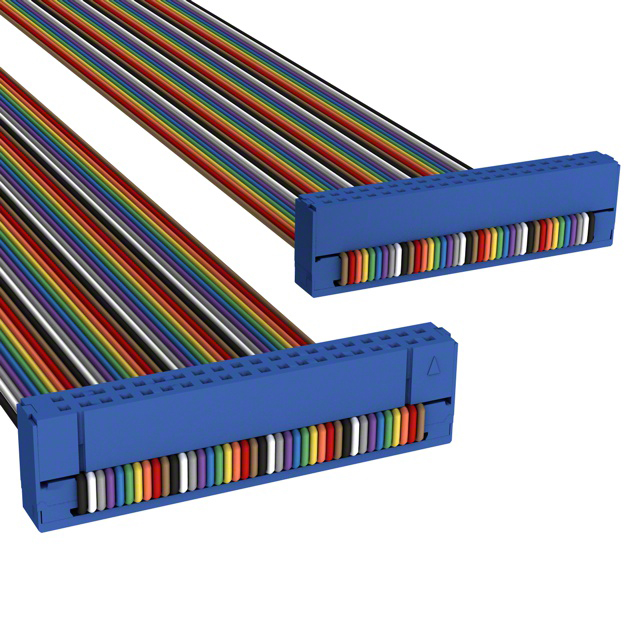

C3BBG-4036M

Active

CW Industries

IDC CABLE - CSR40G/AE40M/CSR40G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR40G/AE40M/CSR40G

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Features	Color	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Contact Finish	Number of Rows	Connector Type	Number of Positions	Length [x]	Length [x]
CW Industries C3BBG-4006M	152.4 mm	6 "	0.5 '	Strain Relief	Multiple Ribbon	0.05 "	1.27 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	Unshielded	IDC	Gold	2	Socket to Socket	40
CW Industries C3BBG-4006G	152.4 mm	6 "	0.5 '	Strain Relief		0.05 "	1.27 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	Unshielded	IDC	Gold	2	Socket to Socket	40
CW Industries C3BBG-4036G				Strain Relief		0.05 "	1.27 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	Unshielded	IDC	Gold	2	Socket to Socket	40	3 ft	914.4 mm
CW Industries C3BBG-4036M				Strain Relief	Multiple Ribbon	0.05 "	1.27 mm	10 Áin	0.25 Ám	0.1 in	2.54 mm	Unshielded	IDC	Gold	2	Socket to Socket	40	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Technical documentation and resources
