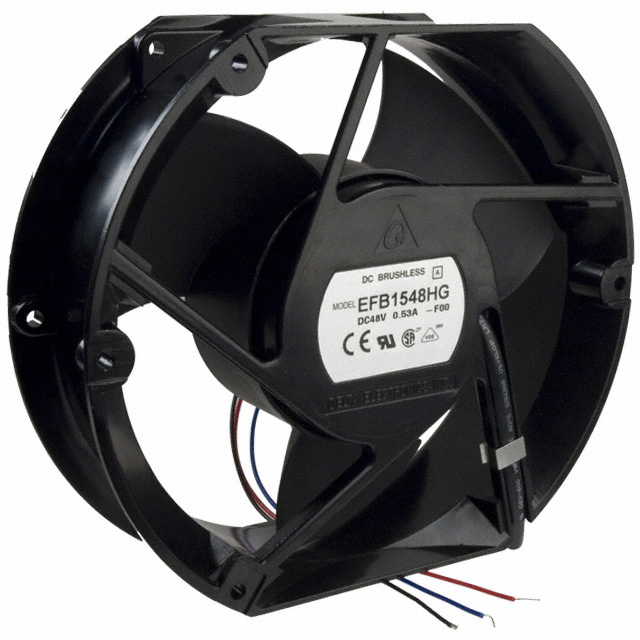

EFB1548HG-F00

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Datasheet +2

EFB1548HG-F00

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB1548HG-F00

Air Flow	251.8 CFM
Air Flow	7.05 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.31 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	14.88 W
RPM	3350 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.689 in H2O
Static Pressure	171.6 Pa
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	24 VDC
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

EFB1548 Series

Part	Current Rating (Amps)	RPM	Features	Termination	Voltage - Rated [custom]	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Air Flow	Air Flow	Lifetime @ Temp.	Fan Type	Power (Watts)	Weight	Weight	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Static Pressure	Static Pressure	Noise	Material - Frame	Material - Blade
Delta Electronics EFB1548VHG-TP14	490 mA	4000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	48 VDC	60 V	36 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	302.3 CFM	8.46 m³/min	80000 Hrs	Tubeaxial	23.52 W	861.8 g	1.9 lbs	Rectangular/Rounded	150 mm	172 mm	2 "	233.4 Pa	0.937 in H2O	60 dB(A)	Aluminum	Plastic
Delta Electronics EFB1548HG-F00	0.31 A	3350 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	48 VDC	60 V	24 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	251.8 CFM	7.05 m³/min	80000 Hrs	Tubeaxial	14.88 W	861.8 g	1.9 lbs	Rectangular/Rounded	150 mm	172 mm	2 "	171.6 Pa	0.689 in H2O	55 dB	Aluminum	Plastic
Delta Electronics EFB1548HHG-F00	0.38 A	3700 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	48 VDC	60 V	24 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	279.7 CFM	7.83 m³/min	80000 Hrs	Tubeaxial	18.24 W	861.8 g	1.9 lbs	Rectangular/Rounded	150 mm	172 mm	2 "			57.5 dB	Aluminum	Plastic
Delta Electronics EFB1548VHG	490 mA	4000 RPM		2 Wire Leads	48 VDC	60 V	24 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	302.3 CFM	8.46 m³/min	80000 Hrs	Tubeaxial	23.52 W	861.8 g	1.9 lbs	Rectangular/Rounded	150 mm	172 mm	2 "	233.4 Pa	0.937 in H2O	60 dB(A)	Aluminum	Plastic
Delta Electronics EFB1548XHG20D	1.38 A	6000 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	48 VDC	60 V	24 VDC	Ball	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	435.4 CFM	12.19 m³/min	80000 Hrs	Tubeaxial	66.2 W	861.8 g	1.9 lbs	Rectangular/Rounded	150 mm	172 mm	2 "	519.3 Pa	2.085 in H2O	73 dB(A)	Aluminum	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EFB1548 Series

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 251.8 CFM (7.05m³/min) 3 Wire Leads
