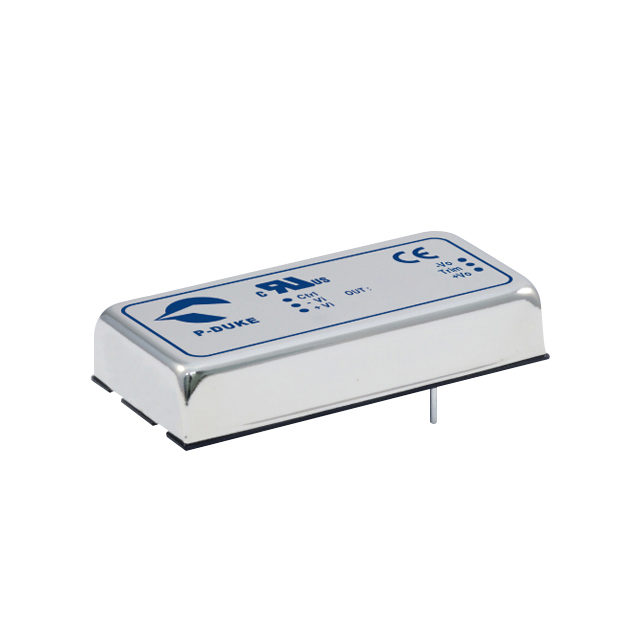

FED20-48S05W

Active

P-DUKE Technology

DC DC CONVERTER 5V 20W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 5V 20W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 20W

Part	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Applications	Package / Case	Type	Voltage - Input (Max) [Max]	Approval Agency	Features	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Control Features
P-DUKE Technology FED20-48S05W	88 %	5 V	-40 °C	105 C	1.6 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1	ITE (Commercial)	6-DIP Module	Isolated Module	75 V	CB, CE, cURus	Remote On/Off	Through Hole	18 V	4 A	20 W	Active High, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 4A 18V - 75V Input
