TSM-107-04-L-SH-P-TR

Active

Samtec Inc.

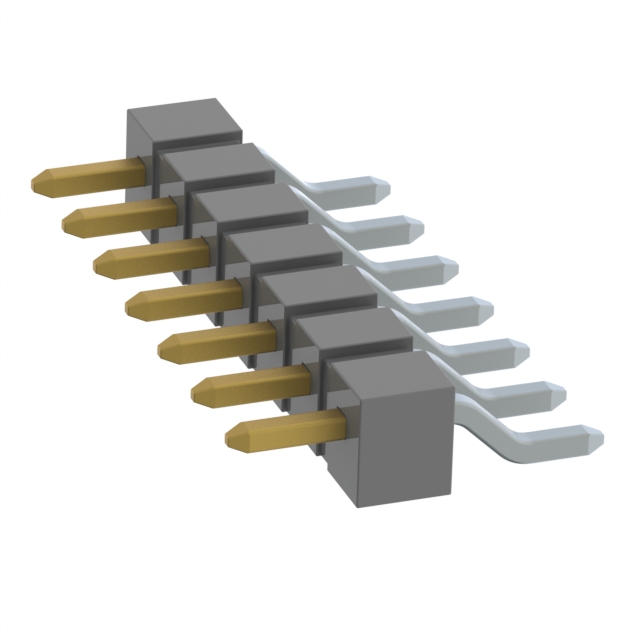

CONN HEADER SMD R/A 7POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-107-04-L-SH-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 7POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-107-04-L-SH-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-107 Series

...

Part	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Insulation Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Connector Type	Material Flammability Rating	Contact Type	Number of Positions Loaded	Features	Contact Finish - Post	Contact Shape	Contact Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Mounting Type	Fastening Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating [x]	Number of Positions Loaded
Samtec Inc. TSM-107-02-T-DV-A-P	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	105 ░C	-55 °C	Black	Cuttable Header	UL94 V-0	Male Pin	All	Board Guide Pick and Place	Tin	Square	Phosphor Bronze	8.13 mm	0.32 in	Unshrouded	Surface Mount	Push-Pull	0.1 in	2.54 mm
Samtec Inc. TSM-107-01-LM-DH-LC	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Header	UL94 V-0	Male Pin	All		Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount Right Angle	Push-Pull	0.24 in	6.1 mm	10 çin	0.25 çm	Gold	0.23 in
Samtec Inc. TSM-107-03-S-DH-006	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Header	UL94 V-0	Male Pin			Tin	Square	Phosphor Bronze	10.67 mm	0.42 in	Unshrouded	Surface Mount Right Angle	Push-Pull	0.24 in	6.1 mm	30 Áin	0.76 Ám	Gold		13
Samtec Inc. TSM-107-01-F-DV-006	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Cuttable Header	UL94 V-0	Male Pin			Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount	Push-Pull	0.1 in	2.54 mm	3 µin	0.076 µm	Gold	0.23 in	13
Samtec Inc. TSM-107-03-L-DV-P	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Cuttable Header	UL94 V-0	Male Pin	All	Pick and Place	Tin	Square	Phosphor Bronze	10.67 mm	0.42 in	Unshrouded	Surface Mount	Push-Pull	0.1 in	2.54 mm	10 çin	0.25 çm	Gold
Samtec Inc. TSM-107-01-S-DH-A-001-P	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Header	UL94 V-0	Male Pin		Board Guide Pick and Place	Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount Right Angle	Push-Pull	0.24 in	6.1 mm	30 Áin	0.76 Ám	Gold	0.23 in	13
Samtec Inc. TSM-107-01-SM-DV-P-TR	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Cuttable Header	UL94 V-0	Male Pin	All	Pick and Place	Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount	Push-Pull	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	0.23 in
Samtec Inc. TSM-107-01-LM-DH	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	125 °C	-55 °C	Black	Header	UL94 V-0	Male Pin	All		Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount Right Angle	Push-Pull	0.24 in	6.1 mm	10 çin	0.25 çm	Gold	0.23 in
Samtec Inc. TSM-107-04-L-SH-P-TR	7	Solder	0.1 in	2.54 mm			Board to Board Cable	Liquid Crystal Polymer (LCP)	1	125 °C	-55 °C	Black	Header	UL94 V-0	Male Pin	All	Pick and Place	Tin	Square	Phosphor Bronze	3.05 mm	0.12 in	Unshrouded	Surface Mount Right Angle	Push-Pull	0.12 in	3.05 mm	10 çin	0.25 çm	Gold
Samtec Inc. TSM-107-01-TM-DH-A	14	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Board to Board Cable	Liquid Crystal Polymer (LCP)	2	105 ░C	-55 °C	Black	Header	UL94 V-0	Male Pin	All	Board Guide	Tin	Square	Phosphor Bronze	5.84 mm		Unshrouded	Surface Mount Right Angle	Push-Pull	0.24 in	6.1 mm				0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	350	$ 1.27

Description

General part information

TSM-107 Series

Connector Header Surface Mount, Right Angle 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources
