5-103673-6
ActiveTE Connectivity AMP Connectors

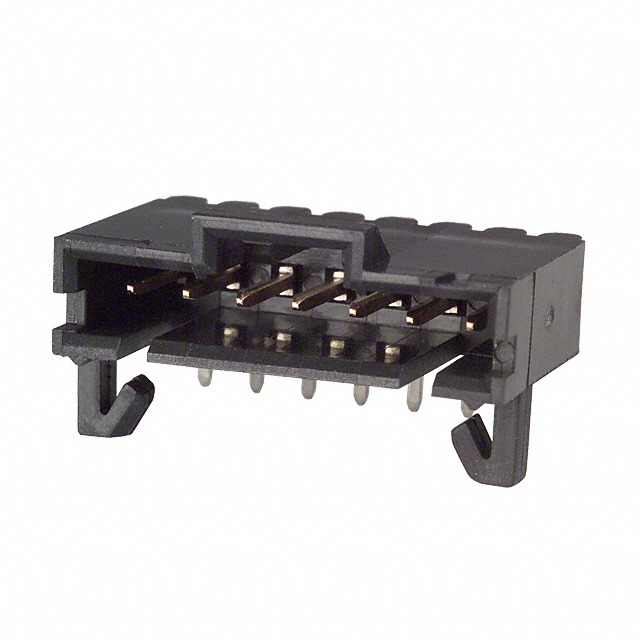

CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103673-6
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103673-6 | 103673 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Keying Slot | Board Lock, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 7 | 2 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1872 | $ 1.08 | |
103673 Series
CONN HEADER R/A 17POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Fastening Type | Current Rating (Amps) | Mounting Type | Features | Contact Finish - Post | Connector Type | Contact Material | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Shape | Applications | Shrouding | Style | Contact Finish - Mating | Insulation Material | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Length - Mating [x] | Contact Length - Mating | Termination | Pitch - Mating | Pitch - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-103673-6 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103673-4 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103673-8 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 9 |
TE Connectivity AMP Connectors 5-103673-1 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 5-103673-7 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 8 |
TE Connectivity AMP Connectors 7-103673-3 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 24 |
TE Connectivity AMP Connectors 103673-5 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin-Lead | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 6 |
TE Connectivity AMP Connectors 2-103673-4 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 5-103673-3 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 4 |
TE Connectivity AMP Connectors 2-103673-0 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 21 |
TE Connectivity AMP Connectors 1-103673-6 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin-Lead | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 2-103673-1 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 22 positions |
TE Connectivity AMP Connectors 5-103673-2 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | |
TE Connectivity AMP Connectors 2-103673-3 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 24 |
TE Connectivity AMP Connectors 1-103673-0 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin-Lead | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 11 |
TE Connectivity AMP Connectors 103673-1 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin-Lead | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 5-103673-6 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 7 |
TE Connectivity AMP Connectors 103673-8 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin-Lead | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 9 |
TE Connectivity AMP Connectors 6-103673-9 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 20 |
TE Connectivity AMP Connectors 5-103673-5 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 6 |
TE Connectivity AMP Connectors 6-103673-3 | 2.54 µm | 100 µin | 1 | Latch Holder | 3 A | Through Hole, Right Angle | Board Lock, Keying Slot | Tin | Header | Brass | Black | 0.13 in | 3.3 mm | Square | Automotive, General Purpose, Medical, Telecommunications | Shrouded - 4 Wall | Board to Board, Cable | Gold | Thermoplastic | UL94 V-0 | 15 µin | 0.38 µm | All | -65 ░C | 105 ░C | Male Pin | 0.23 in | 5.84 mm | Solder | 0.1 in | 2.54 mm | 14 |
Description
General part information
103673 Series
Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
