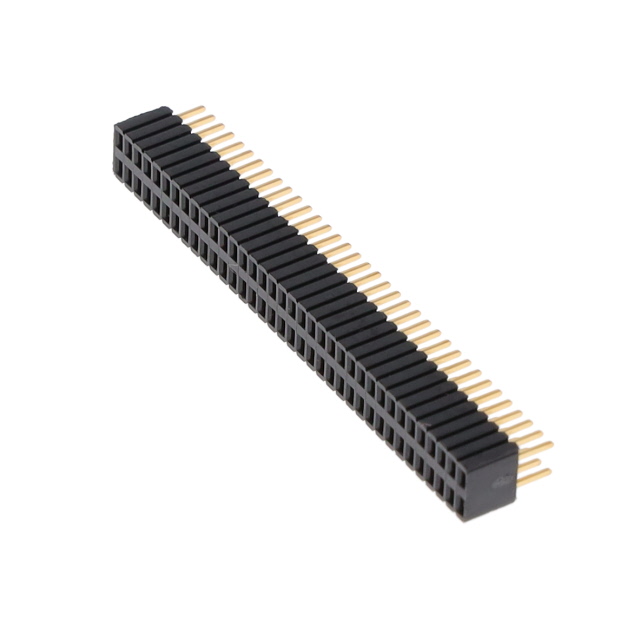

SLM-136-01-G-D

Active

Samtec Inc.

CONN SOCKET STRIP SKT 72 POS 1.27MM SOLDER ST THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 72 POS 1.27MM SOLDER ST THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-136-01-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Post	Contact Material	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Material	Termination	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SLM-136-01-S-S	2.92 mm	0.115 in	Black	4.57 mm	0.18 "	-55 °C	125 °C	Rectangular	Tin	Phosphor Bronze	Forked	All	Gold	0.05 in	1.27 mm	1	Liquid Crystal Polymer (LCP)	Solder	36	Receptacle	30 Áin	0.76 Ám	Push-Pull	Through Hole
Samtec Inc. SLM-136-01-G-D	2.92 mm	0.115 in	Black	4.57 mm	0.18 "	-55 °C	125 °C	Rectangular	Gold	Phosphor Bronze	Forked	All	Gold	0.05 in	1.27 mm	2	Liquid Crystal Polymer (LCP)	Solder	72	Receptacle	20 µin	0.51 µm	Push-Pull	Through Hole	3 µin	0.076 µm	2.54 mm	0.1 in
Samtec Inc. SLM-136-01-T-S	2.92 mm	0.115 in	Black	4.57 mm	0.18 "	-55 °C	105 ░C	Rectangular	Tin	Phosphor Bronze	Forked	All		0.05 in	1.27 mm	1	Liquid Crystal Polymer (LCP)	Solder	36	Receptacle			Push-Pull	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

72 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
