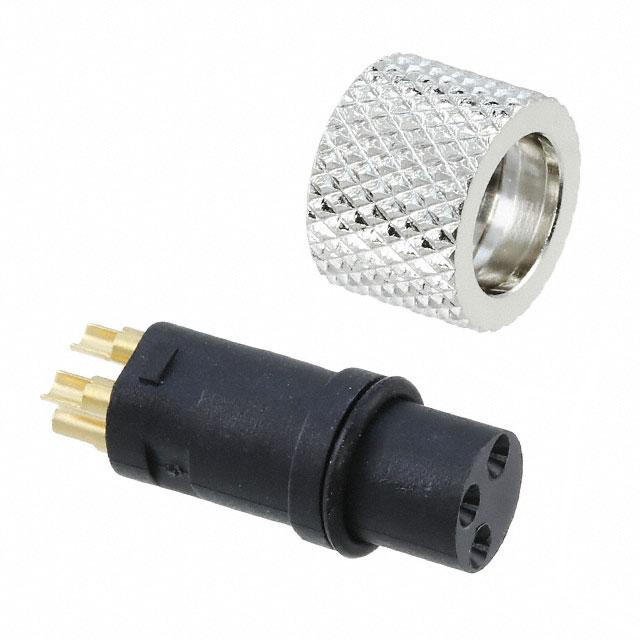

854-003-203RLS1

Active

MH Connectors

CONN PLUG FMALE 3POS SOLDER CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 3POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	854-003-203RLS1

Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Current Rating (Amps)	3 A
Features	Coupling Nut, Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-3
Voltage Rating	60 VDC

Part	Connector Type	Shell Material	Current Rating (Amps)	Primary Material	Shell Finish	Insert Material	Contact Finish - Mating	Material Flammability Rating	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Voltage Rating	Ingress Protection	Contact Finish Thickness - Mating	Features
MH Connectors 854-003-103RLS4	Male Pins Receptacle	Copper Alloy	3 A	Metal	Nickel	Polybutylene Terephthalate (PBT)	Gold	UL94 V-0	Black Silver	10 çin	0.25 çm	Free Hanging (In-Line)	Copper Alloy	6.2 mm	0.244 in	85 °C	-40 °C	M8-3	60 VDC	IP67 - Dust Tight Waterproof
MH Connectors 854-003-203RLS1	Female Sockets Plug	Brass	3 A	Metal	Nickel	Polybutylene Terephthalate (PBT)	Gold	UL94 V-0	Black Silver			Free Hanging (In-Line)	Phosphor Bronze			85 °C	-40 °C	M8-3	60 VDC	IP67 - Dust Tight Waterproof	Flash	Coupling Nut Ground
MH Connectors 854-003-203RLS4	Female Sockets Plug	Brass	3 A	Metal	Nickel	Polybutylene Terephthalate (PBT)	Gold	UL94 V-0	Black Silver	10 çin	0.25 çm	Free Hanging (In-Line)	Phosphor Bronze			85 °C	-40 °C	M8-3	60 VDC	IP67 - Dust Tight Waterproof		Coupling Nut Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.63

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
