7940A 1NH1000

Active

Belden Inc.

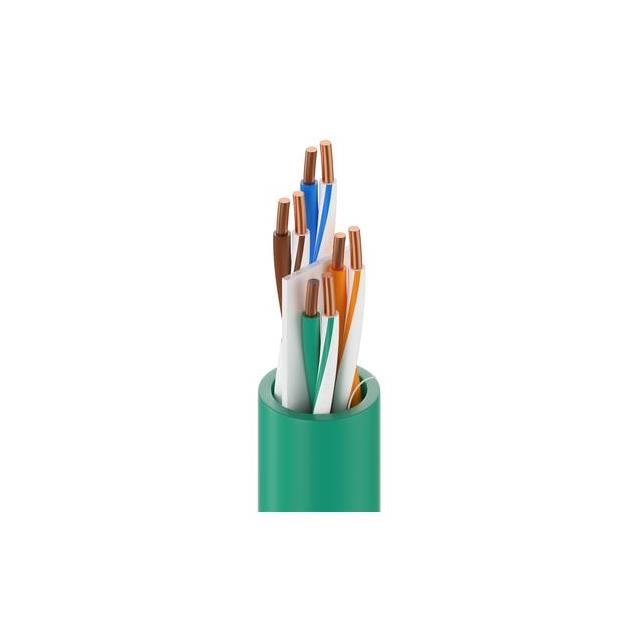

CABLE CAT6 8CON 23AWG TEAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT6 8CON 23AWG TEAL

Technical Specifications

Parameters and characteristics for this part

Specification	7940A 1NH1000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.25 "
Jacket (Insulation) Diameter [diameter]	6.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Teal
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	23 AWG

Part	Voltage	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Features	Ratings	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length	Conductor Strand	Jacket (Insulation) Material
Belden Inc. 7940A 0081000	300 V	8	Gray	0.762 mm	0.03 in	Multi-Pair Cat6	23 AWG	-40 °C	75 ░C	Polyolefin (PO)	Oil Resistant UV Resistant	UL Style CMR	Industrial Network	0.25 "	6.35 mm	Copper Bare	1000 ft	304.8 m	Solid	Poly-Vinyl Chloride (PVC)
Belden Inc. 7940A 0101000	300 V	8	Black	0.762 mm	0.03 in	Multi-Pair Cat6	23 AWG	-40 °C	75 ░C	Polyolefin (PO)	Oil Resistant UV Resistant	UL Style CMR	Industrial Network	0.25 "	6.35 mm	Copper Bare	1000 ft	304.8 m	Solid	Poly-Vinyl Chloride (PVC)
Belden Inc. 7940A 1NH1000	300 V	8	Teal	0.762 mm	0.03 in	Multi-Pair Cat6	23 AWG	-40 °C	75 ░C	Polyolefin (PO)	Oil Resistant UV Resistant	UL Style CMR	Industrial Network	0.25 "	6.35 mm	Copper Bare	1000 ft	304.8 m	Solid	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.94

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Teal 23 AWG 1000.0' (304.8m)
