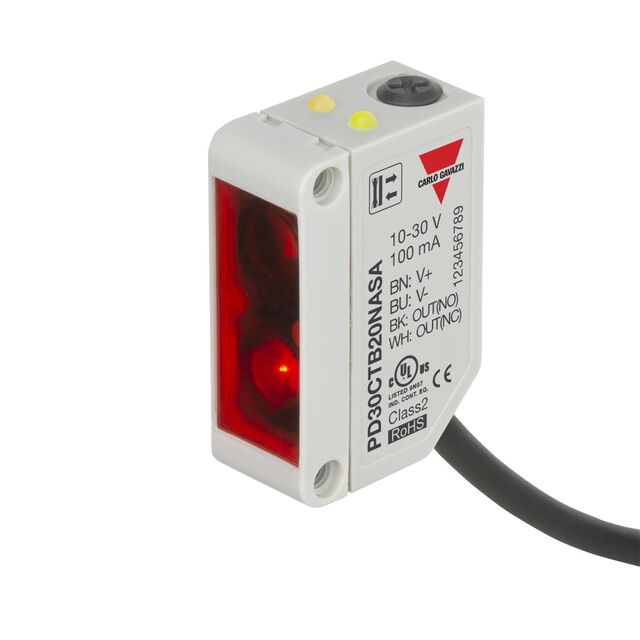

PD30CTB20NASA

Active

CARLO GAVAZZI

SENSOR REFLECTIVE 200MM NPN

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR REFLECTIVE 200MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Connection Method	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Ingress Protection	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Light Source
CARLO GAVAZZI PD30CTB20NASA	Diffuse Reflective	Cable	1 ms	60 °C	-25 °C	78.74 in	2 m	IP67	200 mm	7.874 "	30 VDC	10 VDC	NPN
CARLO GAVAZZI PD30CTB20PAIS	Diffuse Reflective	Cable	1 ms	60 °C	-25 °C	78.74 in	2 m	IP67	200 mm	7.874 "	30 VDC	10 VDC	PNP	Infrared (850nm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 116.42

General part information

Reflective, Diffuse Optical Sensor 7.874" (200mm) NPN

Technical documentation and resources

No documents available
