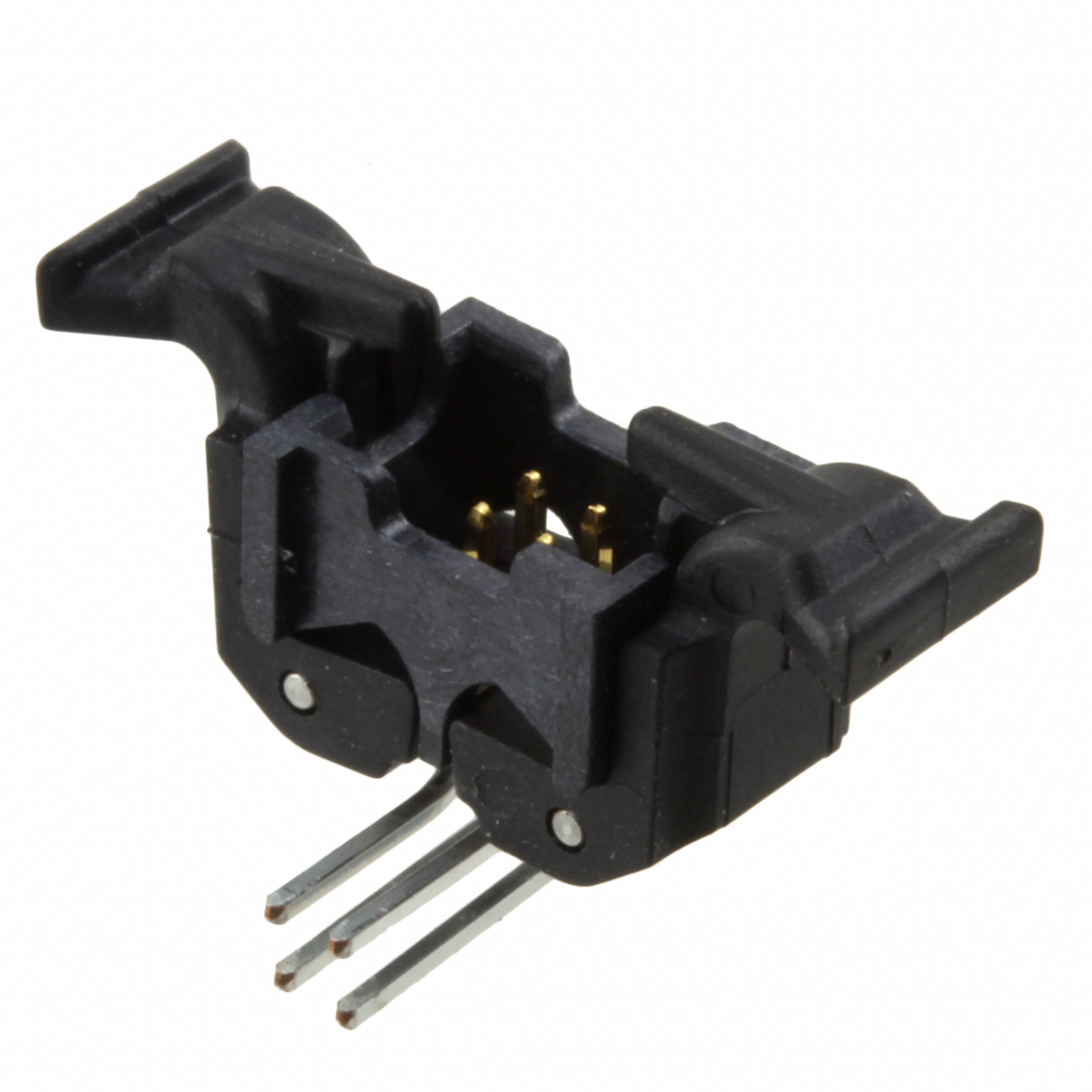

45204-520230

Active

3M (TC)

CONN, R/A HEADER, 4POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet

45204-520230

Active

3M (TC)

CONN, R/A HEADER, 4POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45204-520230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45204 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Material	Voltage Rating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Shape	Contact Type	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Fastening Type	Features	Number of Positions	Mated Stacking Heights	Contact Finish Thickness - Mating
3M (TC) 45204-520230	200 µin	5.08 µm	Board to Cable/Wire	Copper Alloy	125 VDC	Shrouded - 4 Wall	0.05 in	1.27 mm	Through Hole Right Angle	Square	Male Pin	All	2	Tin	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	125 °C	-65 ░C	Solder	0.094 in	2.4 mm	UL94 V-0	Header	Gold	5.33 mm	0.21 in	0.05 in	1.27 mm	Latch Lock/Eject Hooks Short	Keying Slot	4
3M (TC) 45204-600230	200 µin	5.08 µm	Board to Cable/Wire	Copper Alloy	125 VDC	Shrouded - 4 Wall	0.05 in	1.27 mm	Through Hole	Square	Male Pin	All	2	Tin	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	125 °C	-65 ░C	Solder	0.094 in	2.4 mm	UL94 V-0	Header	Gold	5.65 mm	0.222 "	0.05 in	1.27 mm	Push-Pull	Keying Slot	4	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45204-600200	100 µin	2.54 µm	Board to Cable/Wire	Copper Alloy	125 VDC	Shrouded - 4 Wall	0.05 in	1.27 mm	Through Hole	Square	Male Pin	All	2	Tin	Liquid Crystal Polymer (LCP)			125 °C	-65 ░C	Solder	0.094 in	2.4 mm	UL94 V-0	Header	Gold	5.65 mm	0.222 "	0.05 in	1.27 mm	Push-Pull	Keying Slot	4	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash
3M (TC) 45204-200200	100 µin	2.54 µm	Board to Cable/Wire	Copper Alloy	125 VDC	Shrouded - 4 Wall	0.05 in	1.27 mm	Surface Mount	Square	Male Pin	All	2	Tin	Liquid Crystal Polymer (LCP)			125 °C	-65 ░C	Solder			UL94 V-0	Header	Gold	5.65 mm	0.222 "	0.05 in	1.27 mm	Push-Pull	Keying Slot Pick and Place	4	5.84 mm 6.6 mm 7.21 mm 8.13 mm	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	228	$ 4.13
Newark	Each	1	$ 9.59
		10	$ 8.81
		25	$ 8.17
		50	$ 7.56
		100	$ 7.09
		250	$ 6.65
		500	$ 6.27

Description

General part information

45204 Series

Connector Header Through Hole, Right Angle 4 position 0.050" (1.27mm)

Documents

Technical documentation and resources

451, 452 Series Product Spec

Datasheet
