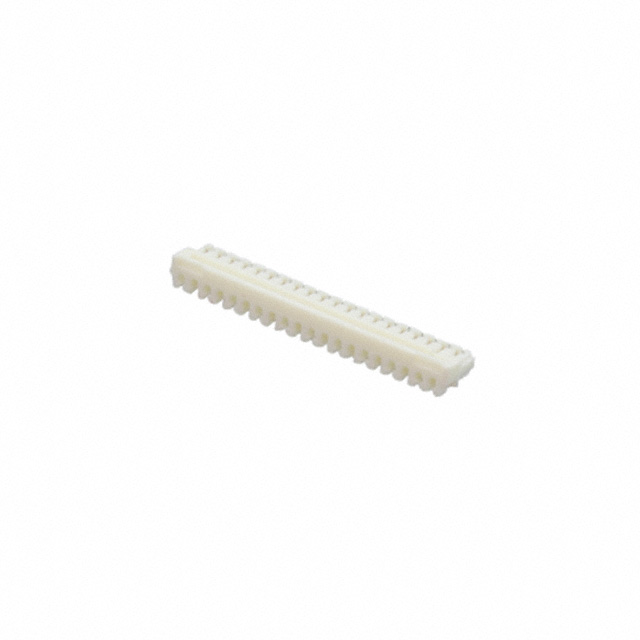

20XSR-36S
ActiveJST Sales America Inc.
CONN RCPT 20POS IDC 36AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
20XSR-36S
ActiveJST Sales America Inc.
CONN RCPT 20POS IDC 36AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20XSR-36S |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Closed End, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
| Wire Gauge | 36 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.05 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.09 | |||
Description
General part information
20XSR Series
20 Position Rectangular Receptacle Connector IDC Tin 36 AWG
