PPTC071LFBN-RC

Active

Sullins Connector Solutions

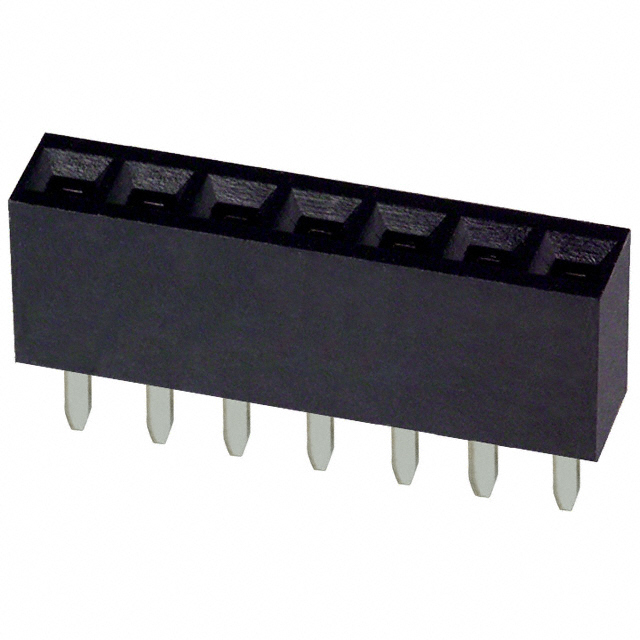

BOARD CONNECTOR, 7 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 7 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC071LFBN-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Insulation Color	Insulation Material	Contact Type	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Post	Voltage Rating	Fastening Type	Termination	Mounting Type	Contact Material	Number of Positions Loaded	Connector Type	Current Rating (Amps)	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post
Sullins Connector Solutions PPTC071LFBN	0.1 in	2.54 mm	UL94 V-0	7	0.335 "	8.51 mm	Square	Black	Polyester	Female Socket	3.2 mm	0.126 in	Tin	250 VDC	Push-Pull	Solder	Through Hole	Phosphor Bronze	All	Header	3 A	1	-40 °C	105 ░C
Sullins Connector Solutions PPTC071LFBN-RC	0.1 in	2.54 mm	UL94 V-0	7	0.335 "	8.51 mm	Square	Black	Polyester	Female Socket	3.2 mm	0.126 in	Tin	250 VDC	Push-Pull	Solder	Through Hole	Phosphor Bronze	All	Header	3 A	1	-40 °C	105 ░C
Sullins Connector Solutions PPTC071LGBN-RC	0.1 in	2.54 mm	UL94 V-0	7	0.1 in	2.54 mm	Square	Black	Polyester	Female Socket	3.15 mm		Tin	250 VDC	Push-Pull	Solder	Through Hole Right Angle	Phosphor Bronze	All	Header	3 A	1	-40 °C	105 ░C	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Header Connector 0.100" (2.54mm) Through Hole Tin
