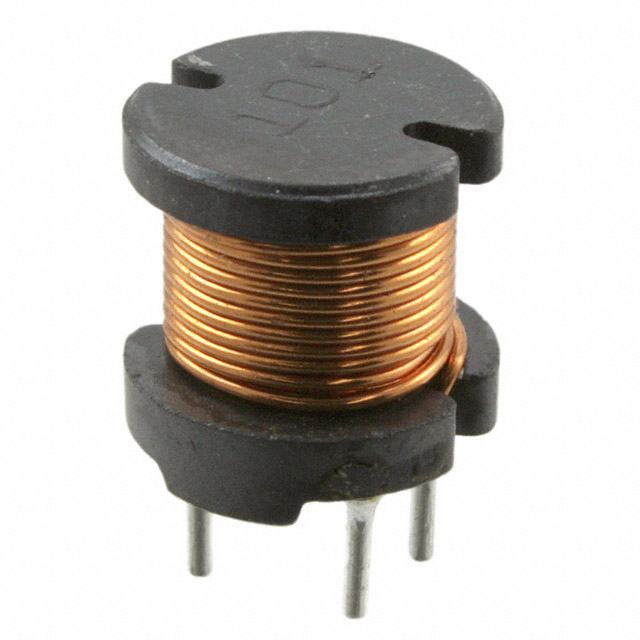

RL110-470K-RC

Active

Bourns Inc.

FIXED IND 47UH 2.5A 83 MOHM TH

Search across all available documentation for this part.

Active

Bourns Inc.

FIXED IND 47UH 2.5A 83 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Inductance	DC Resistance (DCR) [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency - Self Resonant	Shielding	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Current Rating (Amps)	Material - Core	Inductance Frequency - Test
Bourns Inc. RL110-181K-RC	Drum Core Wirewound	Through Hole	180 µH	310 mOhm	10 %	0.413 in	10.5 mm	10 mm	0.394 in	3.9 MHz	Unshielded	25 796 kHz	-40 °C	105 ░C	Radial Vertical Cylinder	4 Leads	1.3 A	Ferrite
Bourns Inc. RL110-330K-RC	Drum Core Wirewound	Through Hole	33 µH	55 mOhm	10 %	0.413 in	10.5 mm	10 mm	0.394 in	6 MHz	Unshielded	2.52 MHz 20	-40 °C	105 ░C	Radial Vertical Cylinder	4 Leads	2.9 A	Ferrite	2.52 MHz
Bourns Inc. RL110-271K-RC	Drum Core Wirewound	Through Hole	270 µH	400 mOhm	10 %	0.413 in	10.5 mm	10 mm	0.394 in	3.4 MHz	Unshielded	20 796 kHz	-40 °C	105 ░C	Radial Vertical Cylinder	4 Leads	1 A	Ferrite
Bourns Inc. RL110-470K-RC	Drum Core Wirewound	Through Hole	47 µH	83 mOhm	10 %	0.413 in	10.5 mm	10 mm	0.394 in	8.1 MHz	Unshielded	2.52 MHz 25	-40 °C	105 ░C	Radial Vertical Cylinder	4 Leads	2.5 A	Ferrite	2.52 MHz
Bourns Inc. RL110-471K-RC	Drum Core Wirewound	Through Hole		710 mOhm	10 %	0.413 in	10.5 mm	10 mm	0.394 in	2.5 MHz	Unshielded	20 796 kHz	-40 °C	105 ░C	Radial Vertical Cylinder	4 Leads	780 mA	Ferrite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.86

General part information

47 µH Unshielded Drum Core, Wirewound Inductor 2.5 A 83mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
