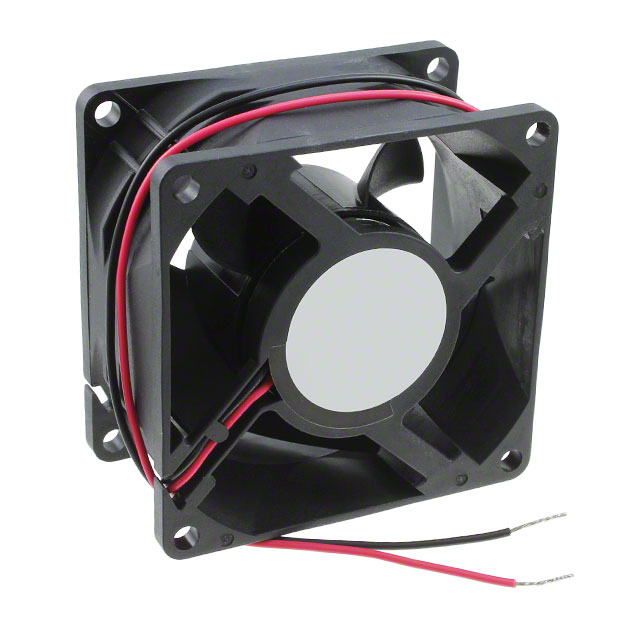

AFB0712VHE

Obsolete

Delta Electronics

FAN AXIAL 69.5X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

AFB0712VHE

Obsolete

Delta Electronics

FAN AXIAL 69.5X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0712VHE	AFB0712 Series

Air Flow	62.2 CFM	23.4 - 62.2 CFM
Air Flow	1.74 mł/min	0.655 - 1.74 mł/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.7 A	0.17 - 650 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	51 dB(A)	26.5 - 51 dB(A)
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	8.4 W	1.32 - 8.4 W
RPM	7000 RPM	2800 - 7000 RPM
Size / Dimension	-	70 mm
Size / Dimension [x]	69.5 mm	69.5 - 70 mm
Size / Dimension [z]	69.5 mm	69.5 mm
Static Pressure	0.87 in H2O	0.123 - 0.87 in H2O
Static Pressure	216.7 Pa	30.6 - 216.7 Pa
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	12.6 VDC	12.6 - 13.8 VDC
Voltage Range [Min]	7 V	5 - 7 VDC
Weight	135.17 g	47.17 - 135.17 g
Weight	0.298 lb	0.104 - 0.298 lb
Width	-	15 mm
Width [y]	38 mm	20 - 38 mm

AFB0712 Series

FAN AXIAL 70X20MM 12VDC WIRE

Part	Fan Type	Width [y]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Current Rating (Amps)	Voltage - Rated	Noise	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Material - Blade	Material - Frame	Features	Width [x]	Size / Dimension [z]
Delta Electronics AFB0712HHD	Tubeaxial	20 mm	0.154 lb	69.85 g	5 VDC	13.8 VDC	70000 Hrs	Ball	70 mm	70 mm	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	3 W	0.25 A	12 VDC	40.5 dB(A)	4400 RPM	1.13 mł/min	40.4 CFM	0.222 in H2O	55.3 Pa	Plastic	Plastic
Delta Electronics AFB0712HHD-R00	Tubeaxial	20 mm	0.154 lb	69.85 g	5 VDC	13.8 VDC	70000 Hrs	Ball	70 mm	70 mm	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	3 W	0.25 A	12 VDC	40.5 dB(A)	4400 RPM	1.13 mł/min	40.4 CFM	0.222 in H2O	55.3 Pa	Plastic	Plastic	Locked Rotor Sensor
Delta Electronics AFB0712SH-AF00	Tubeaxial	25.4 mm	0.238 lb	107.95 g	5 VDC	13.8 VDC	70000 Hrs	Ball	70 mm	70 mm	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	7.56 W	0.63 A	12 VDC	50.5 dB(A)	6300 RPM	1.71 m³/min	61.1 CFM	0.625 in H2O	155.7 Pa	Plastic	Plastic	Locked Rotor Protection, Speed Sensor (Tach)
Delta Electronics AFB0712MB	Tubeaxial		0.104 lb	47.17 g			70000 Hrs	Ball	70 mm	70 mm	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	1.68 W	140 mA	12 VDC	31 dB(A)	3300 RPM	0.79 mł/min	28.2 CFM	0.123 in H2O	30.6 Pa	Plastic	Plastic		15 mm
Delta Electronics AFB0712HB-F00	Tubeaxial		0.104 lb	47.17 g			70000 Hrs	Ball	70 mm	70 mm	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	2.16 W	0.18 A	12 VDC	34.5 dB(A)	3800 RPM	0.93 mł/min	33.2 CFM	0.162 in H2O	40.3 Pa	Plastic	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0712VHB-F00	Tubeaxial		0.116 lb	52.62 g	5 VDC	12.6 VDC	70000 Hrs	Ball	70 mm	70 mm	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	4.44 W	370 mA	12 VDC	44 dB	5200 RPM	1.27 mł/min	45.5 CFM	0.306 in H2O	76.4 Pa	Plastic	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0712SHX02	Tubeaxial	25.4 mm	0.199 lb	90.26 g	5 VDC	13.8 VDC	70000 Hrs	Ball	70 mm	70 mm	4 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	7.8 W	650 mA	12 VDC	50.5 dB(A)	6300 RPM	1.71 m³/min	61.1 CFM	0.625 in H2O	155.7 Pa	Plastic	Plastic	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Delta Electronics AFB0712VHB	Tubeaxial		0.116 lb	52.62 g	5 VDC	12.6 VDC	70000 Hrs	Ball	70 mm	70 mm	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	4.44 W	370 mA	12 VDC	44 dB	5200 RPM	1.27 mł/min	45.5 CFM	0.306 in H2O	76.4 Pa	Plastic	Plastic		15 mm
Delta Electronics AFB0712VHE	Tubeaxial	38 mm	0.298 lb	135.17 g	7 V	12.6 VDC	70000 Hrs	Ball		69.5 mm	2 Wire Leads	60 °C	60 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	8.4 W	0.7 A	12 VDC	51 dB(A)	7000 RPM	1.74 mł/min	62.2 CFM	0.87 in H2O	216.7 Pa	Plastic	Plastic			69.5 mm
Delta Electronics AFB0712MB-F00	Tubeaxial		0.104 lb	47.17 g			70000 Hrs	Ball	70 mm	70 mm	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	CE, CSA, UL, VDE	1.68 W	140 mA	12 VDC	31 dB(A)	3300 RPM	0.79 mł/min	28.2 CFM	0.123 in H2O	30.6 Pa	Plastic	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0712 Series

Fan Tubeaxial 12VDC Square - 69.5mm L x 69.5mm H Ball 62.2 CFM (1.74m³/min) 2 Wire Leads
