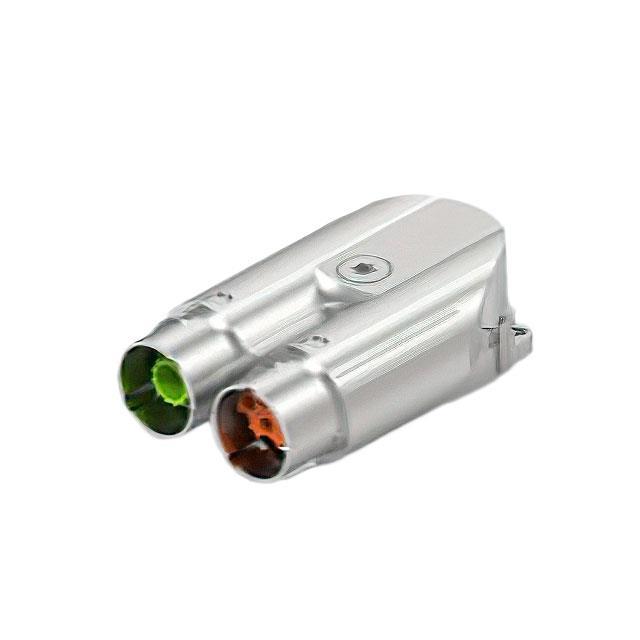

EGA103N00000001000

Active

TE Intercontec

CONN RCPT HSG MALE 24P PNL MT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 24P PNL MT RA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGA103N00000001000	EGA10 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell, Rotatable	Backshell, Rotatable
Housing Color	Silver	Silver
Includes	1 Backshell, 1 O-Ring, 1 Connector	1 Backshell, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Right Angle, Panel Mount	Right Angle, Panel Mount
Note	Contacts Not Included	Contacts Not Included
Number of Positions	24	21 - 24
Number of Positions	-	3
Number of Positions	-	1
Number of Positions	-	17
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

CONN RCPT HSG MALE 24P PNL MT RA

Part	Note	Fastening Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Features	Includes	Type	Material Flammability Rating	Mounting Type	Number of Positions	Ingress Protection	Shell Finish	Shielding	Housing Color	Orientation	Connector Type	Mounting Feature	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
TE Intercontec EGA103N00000001000	Contacts Not Included	Bayonet Lock	Zinc Die Cast	-20 C	130 °C	Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)	Backshell, Rotatable	1 Backshell, 1 Connector, 1 O-Ring	For Male Pins	UL94 V-0	Panel Mount, Right Angle	24	IP66/IP67	Nickel	Unshielded	Silver	Keyed	Receptacle Housing	Flange	Circular
TE Intercontec EGA101N00000001000	Contacts Not Included	Bayonet Lock	Zinc Die Cast	-20 C	130 °C	Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)	Backshell, Rotatable	1 Backshell, 1 Connector, 1 O-Ring	For Male Pins	UL94 V-0	Panel Mount, Right Angle	21	IP66/IP67	Nickel	Unshielded	Silver	Keyed	Receptacle Housing	Flange	Circular	3	1	17

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 (20 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
