87667-5

Active

TE Connectivity AMP Connectors

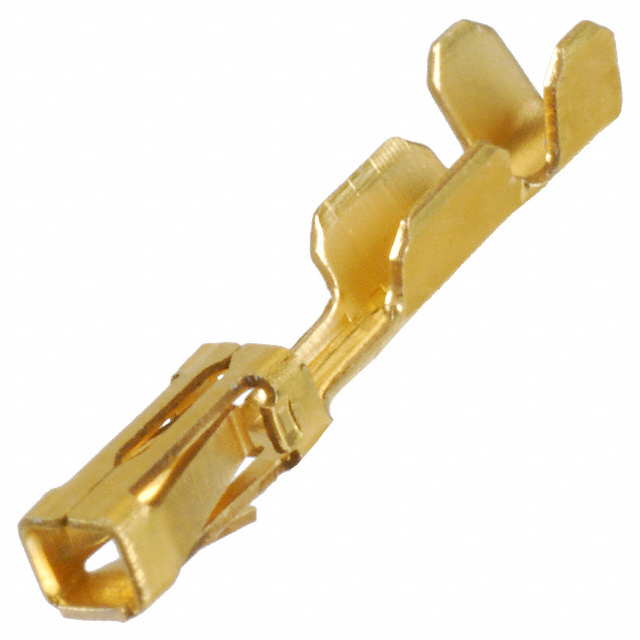

CONN SOCKET 22-26AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 22-26AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 22-26AWG CRIMP GOLD

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish	Pin or Socket
TE Connectivity AMP Connectors 87667-2	22 AWG	26 AWG	0.76 Ám	30 Áin	Crimp	Gold	Socket
TE Connectivity AMP Connectors 87667-4	22 AWG	26 AWG	1.27 µm	50 µin	Crimp	Gold	Socket
TE Connectivity AMP Connectors 87667-5	22 AWG	26 AWG	0.38 µm	15 µin	Crimp	Gold	Socket
TE Connectivity AMP Connectors 87667-1	22 AWG	26 AWG	0.76 Ám	30 Áin	Crimp	Gold	Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 22-26 AWG Crimp
