Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-NRG011TV |
|---|---|
| Board Type | Fully Populated |
| Contents | Board(s) |
| Current - Output | 4 A, 2.3 A |
| Main Purpose | AC/DC, Primary and Secondary Side with PFC |
| Outputs and Type | 2 Non-Isolated Outputs, Non-Isolated |
| Outputs and Type | 2 |
| Power - Output | 200 W |
| Regulator Topology | Resonant |
| Supplied Contents | Board(s) |
| Utilized IC / Part | STNRG011 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 65 V, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-NRG011TV Series

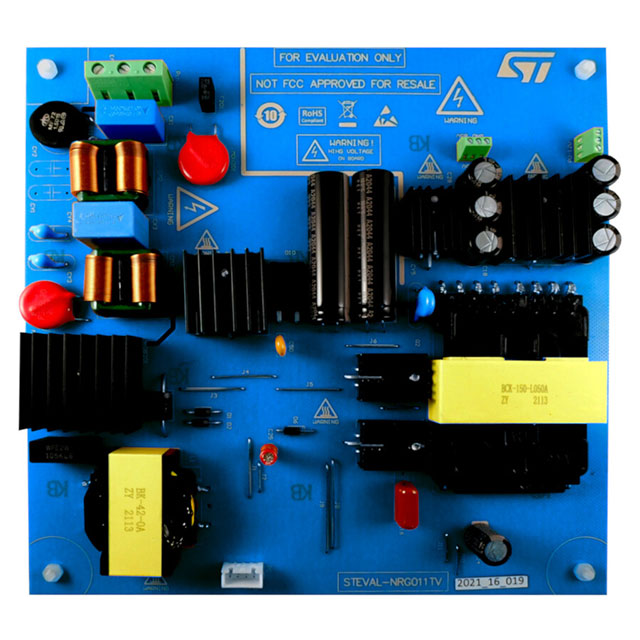

The STEVAL-NRG011TV is a 200 W LED TV SMPS providing 12 V regulated output voltage (for MCU supply and audio system applications) and 65 V output voltage for LED back lighting.
The design is based on the STNRG011 IC digital combo controller that controls a two-stage AC/DC SMPS.
The front-end is a transition mode PFC pre-regulator and the second stage is an LLC HB resonant converter.
