M49142/03-0005

Active

Cinch Connectivity Solutions Trompeter

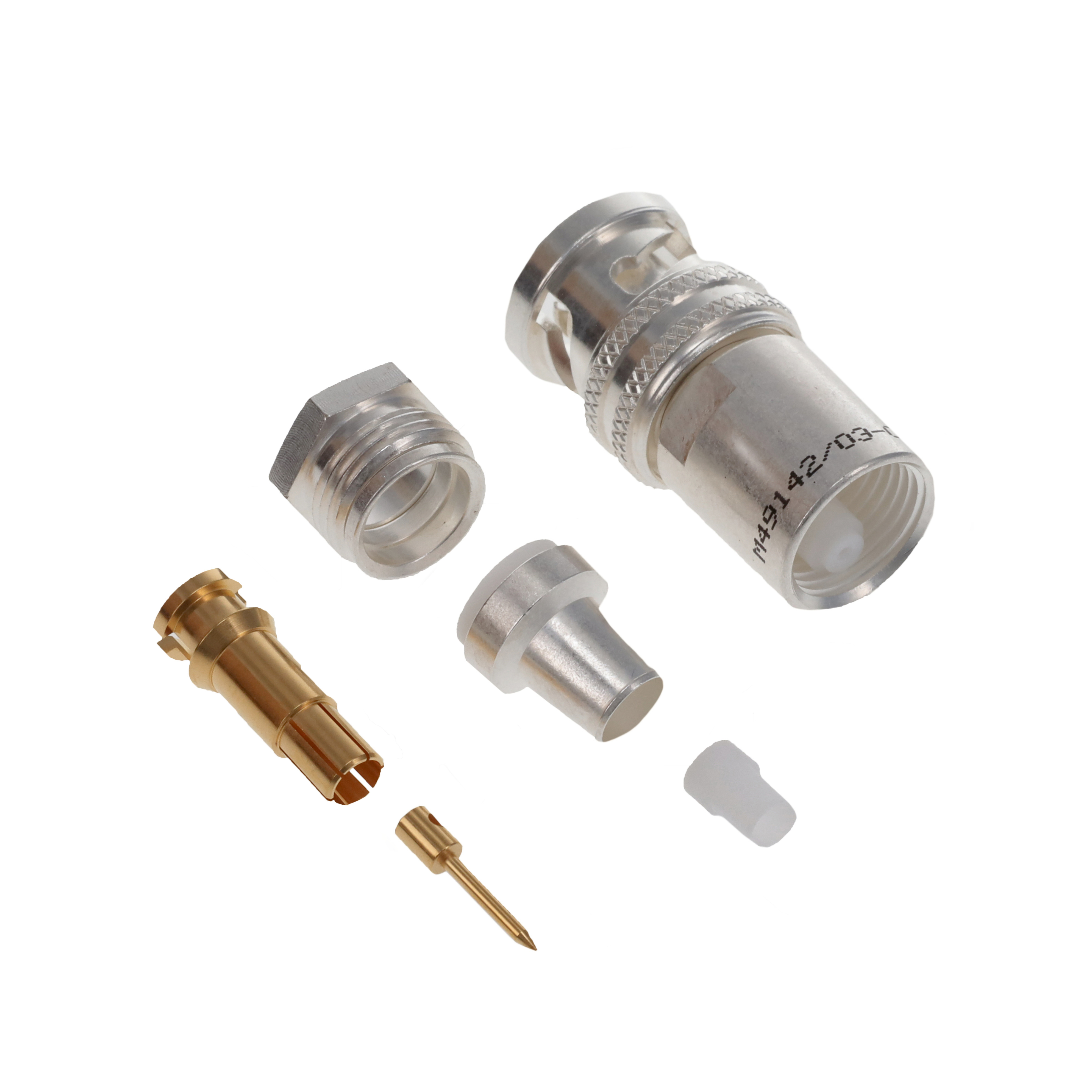

TRB CABLE PLUG, STRAIGHT, WRENCH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

TRB CABLE PLUG, STRAIGHT, WRENCH

Technical Specifications

Parameters and characteristics commom to parts in this series

TRB CABLE PLUG, STRAIGHT, WRENCH

Part	Shield Termination	Connector Type	Cable Group	Body Finish	Mounting Type	Features	Center Contact Plating	Contact Termination	Number of Ports	Housing Color	Impedance	Frequency - Max [Max]	Connector Style	Fastening Type
Cinch Connectivity Solutions Trompeter M49142/03-0007	Crimp	Plug, Male Pin (Concentric)	M17/186-00008, RG-108	Nickel	Free Hanging (In-Line)	Three Lug	Gold	Solder	1	Silver	Non-Constant	500 MHz	TRB, Twinaxial/Triaxial	Bayonet Lock
Cinch Connectivity Solutions Trompeter M49142/03-0005	Crimp	Plug, Male Pin (Concentric)		Silver	Free Hanging (In-Line)		Gold	Solder	1	Silver		500 MHz	TRB, Twinaxial/Triaxial	Bayonet Lock
Cinch Connectivity Solutions Trompeter M49142/03-0117	Crimp	Plug, Male Pin (Concentric)	M17/176-00001	Silver	Free Hanging (In-Line)	Three Lug	Gold	Solder	1	Silver	Non-Constant	500 MHz	TRB, Twinaxial/Triaxial	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 97.22

General part information

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
