BM07B-XASS-TF

Active

JST Sales America Inc.

CONN HEADER SMD 7POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM07B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Height	Insulation Height	Shrouding	Material Flammability Rating	Style	Mated Stacking Heights	Mounting Type	Fastening Type	Termination	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Material	Current Rating (Amps)	Number of Positions	Voltage Rating	Insulation Color	Features	Pitch - Mating	Pitch - Mating
JST Sales America Inc. BM07B-XASS-TF	0.37 in	9.4 mm	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	11.9 mm	Surface Mount	Locking Ramp	Solder	1	Male Pin	-25 °C	85 °C	Nylon Polyamide (PA)	Circular	Header	All	Tin	Copper Alloy	3 A	7	250 VDC	Natural	Solder Retention	2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

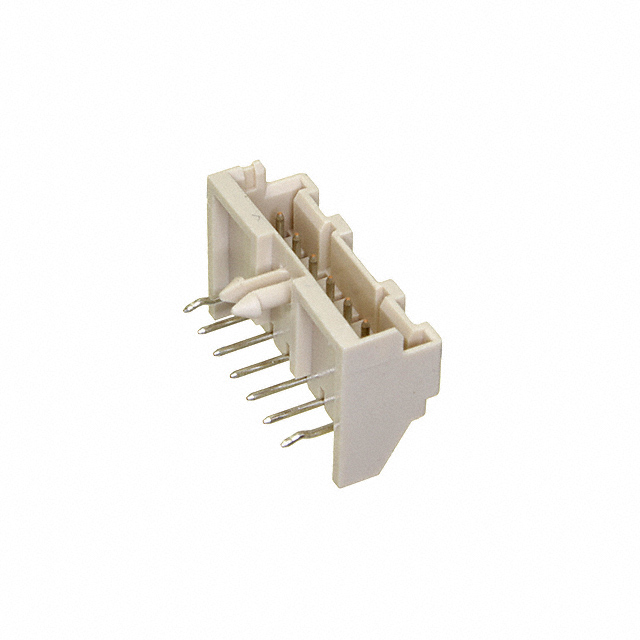

Connector Header Surface Mount 7 position 0.098" (2.50mm)
