TB3MS
ActiveSwitchcraft Inc.

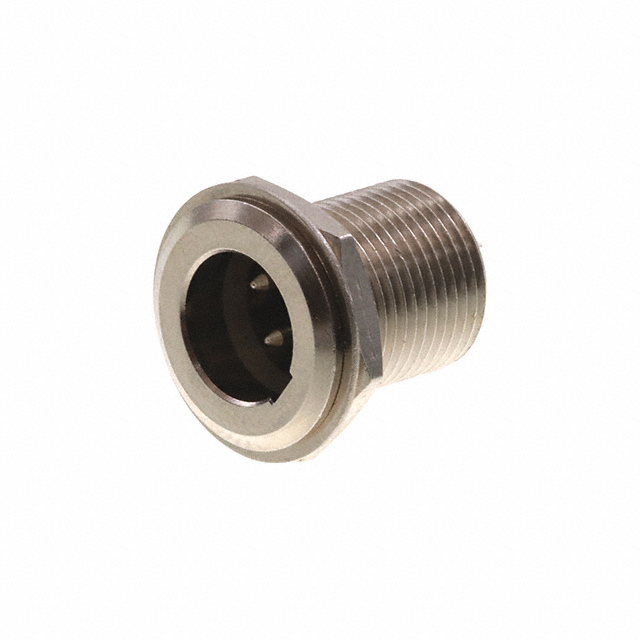

CONN RCPT ML MINI XLR 3P SDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB3MS
ActiveSwitchcraft Inc.
CONN RCPT ML MINI XLR 3P SDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TB3MS | TB3M Series |
|---|---|---|
| Applications | Audio, Medical | Audio, Medical |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | - | Ground |
| Ingress Protection | IP66, IP65 | IP66, IP65 |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Chrome |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | Mini XLR | Mini XLR |
| Voltage Rating | 125 VAC | 125 VAC |
TB3M Series
CONN RCPT ML MINI XLR 3P SDR CUP
| Part | Insert Material | Orientation | Applications | Mounting Feature | Fastening Type | Contact Finish - Mating | Ingress Protection | Current Rating (Amps) | Shell Size - Insert | Voltage Rating | Color | Contact Material | Shell Finish | Shell Material | Primary Material | Connector Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TB3MS | Thermoplastic | Keyed | Audio, Medical | Bulkhead - Rear Side Nut | Latch Lock | Silver | IP65, IP66 | 5 A | Mini XLR | 125 VAC | Silver | Copper Alloy | Nickel | Copper Alloy | Metal | Male Pins, Receptacle | ||||
Switchcraft Inc. TB3MB | Thermoplastic | Keyed | Audio | Bulkhead - Rear Side Nut | Latch Lock | Silver | 5 A | Mini XLR | 125 VAC | Black | Copper Alloy | Chrome | Copper Alloy | Metal | Male Pins, Receptacle | UL94 V-0 | 85 °C | -55 °C | Ground |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.26 | |
| 10 | $ 17.93 | |||
| 25 | $ 16.23 | |||
| 50 | $ 15.08 | |||
| 100 | $ 14.04 | |||
| 250 | $ 12.82 | |||
| 500 | $ 11.99 | |||
Description
General part information
TB3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
