TB3MB

Active

Switchcraft Inc.

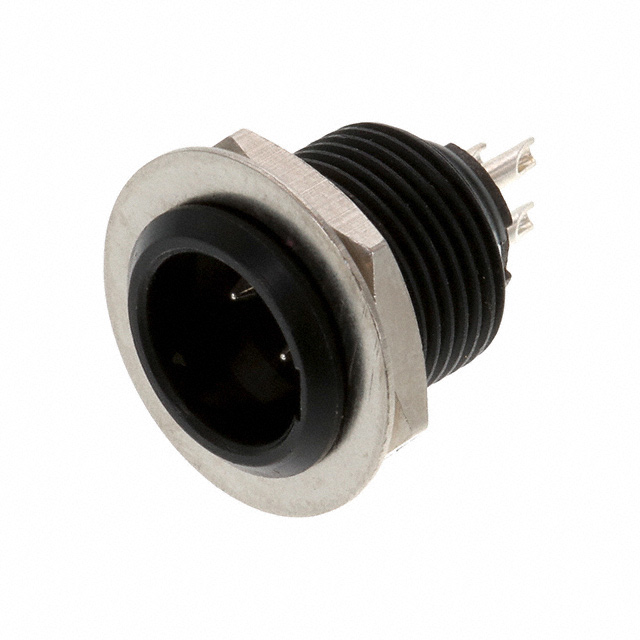

CONN RCPT ML MINI XLR 3P SDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT ML MINI XLR 3P SDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.54

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TB3MB	TB3M Series

Applications	Audio	Audio, Medical
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Ground	Ground
Ingress Protection	-	IP66, IP65
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Copper Alloy	Copper Alloy
Shell Size - Insert	Mini XLR	Mini XLR
Voltage Rating	125 VAC	125 VAC

CONN RCPT ML MINI XLR 3P SDR CUP

Part	Insert Material	Orientation	Applications	Mounting Feature	Fastening Type	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shell Size - Insert	Voltage Rating	Color	Contact Material	Shell Finish	Shell Material	Primary Material	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features
Switchcraft Inc. TB3MS	Thermoplastic	Keyed	Audio, Medical	Bulkhead - Rear Side Nut	Latch Lock	Silver	IP65, IP66	5 A	Mini XLR	125 VAC	Silver	Copper Alloy	Nickel	Copper Alloy	Metal	Male Pins, Receptacle
Switchcraft Inc. TB3MB	Thermoplastic	Keyed	Audio	Bulkhead - Rear Side Nut	Latch Lock	Silver		5 A	Mini XLR	125 VAC	Black	Copper Alloy	Chrome	Copper Alloy	Metal	Male Pins, Receptacle	UL94 V-0	85 °C	-55 °C	Ground
