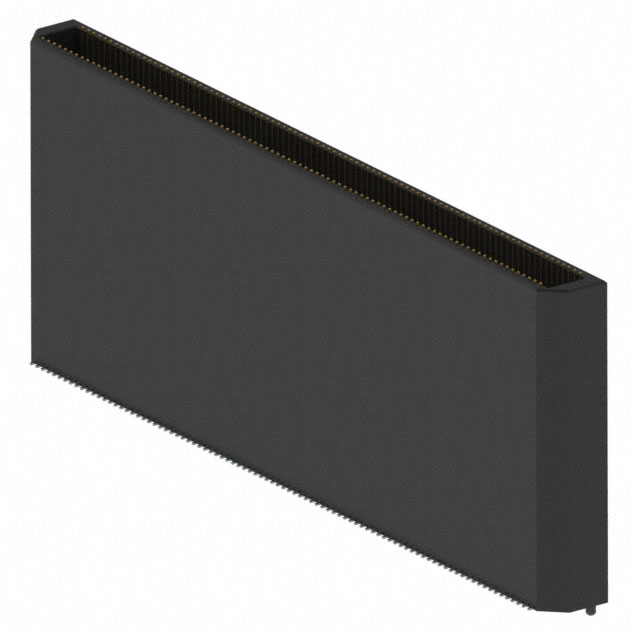

BTE-090-08-L-D-A

Active

Samtec Inc.

CONN HDR 180POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 180POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-090-08-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	1.151 in
Height Above Board [z]	29.24 mm
Mated Stacking Heights	30 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-090-04-L-D-A-K	0.601 in	15.27 mm	Gold	Surface Mount	16.1 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	2	Board Guide	180	10 Áin	0.25 Ám
Samtec Inc. BTE-090-03-L-D-A			Gold	Surface Mount	11.03 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	2	Board Guide	180	10 Áin	0.25 Ám	0.396 in	10.06 mm
Samtec Inc. BTE-090-08-L-D-A			Gold	Surface Mount	30 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	2	Board Guide	180	10 Áin	0.25 Ám	1.151 in	29.24 mm
Samtec Inc. BTE-090-03-F-D-A			Gold	Surface Mount	11.03 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	2	Board Guide	180	3 Áin	0.076 Ám	0.396 in	10.06 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	8	$ 23.38

General part information

180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
