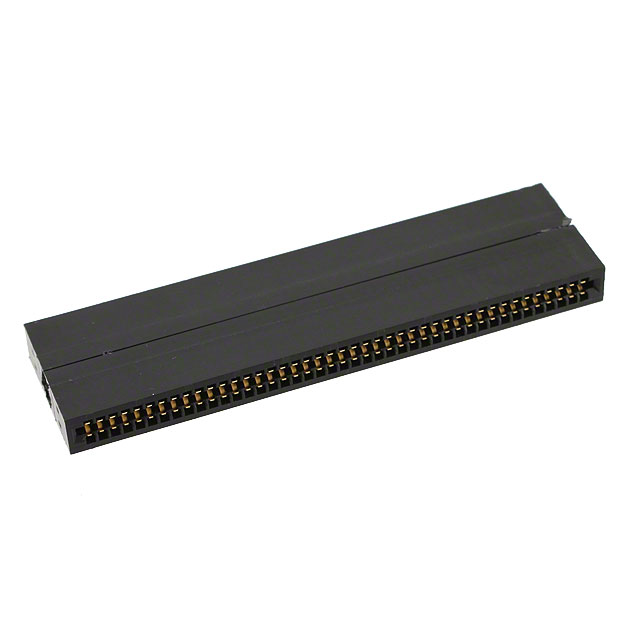

EAC43FSLN

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 86POS

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 86POS

Technical Specifications

Parameters and characteristics for this part

Specification	EAC43FSLN

Adapter Type	Card Slot to Card Slot
Card Thickness	0.062 in
Card Thickness	1.57 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Current Rating (Per Contact)	3 A
Housing Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	86
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C

Part	Housing Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Current Rating (Per Contact)	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness	Card Thickness	Contact Material	Mounting Type	Adapter Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
Sullins Connector Solutions EAC43FSLN	Polybutylene Terephthalate (PBT)	Gold	0.76 Ám	30 Áin	86	3 A	125 °C	-65 ░C	0.062 in	1.57 mm	Phosphor Bronze	Free Hanging (In-Line)	Card Slot to Card Slot
Sullins Connector Solutions EAC43FSLD	Polybutylene Terephthalate (PBT)	Gold	0.76 Ám	30 Áin	86	3 A	125 °C	-65 ░C	0.062 in	1.57 mm	Phosphor Bronze		Card Slot to Card Slot	0.125 in	Top Opening Unthreaded	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 34.77

General part information

86 Position Edge Adapter Connector Card Slot to Card Slot Free Hanging (In-Line)

Technical documentation and resources

No documents available
