R161292190

Active

Radiall USA, Inc.

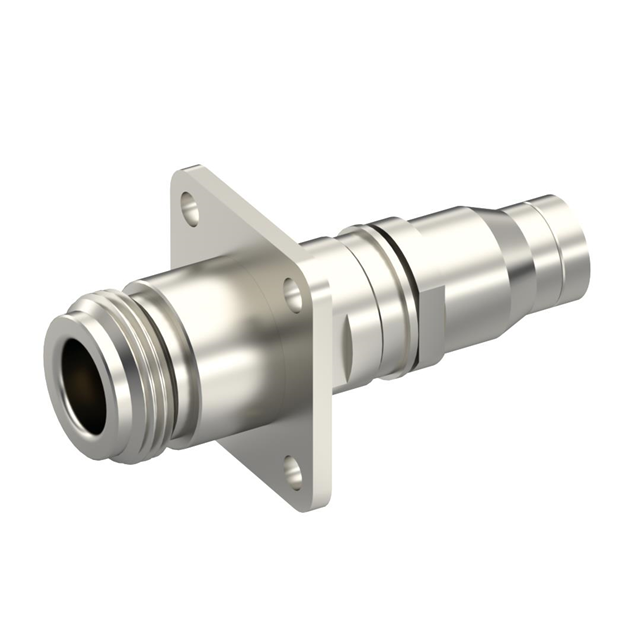

N / JACK STRAIGHT CRIMP TYPE FOR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / JACK STRAIGHT CRIMP TYPE FOR

Technical Specifications

Parameters and characteristics for this part

Specification	R161292190

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Contact Termination	Housing Color	Connector Style	Number of Ports	Frequency - Max [Max]	Mounting Feature	Mating Cycles	Center Contact Plating	Impedance	Body Finish	Body Material	Connector Type	Ingress Protection	Shield Termination	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Voltage Rating	Dielectric Material
Radiall USA, Inc. R161292190	Crimp	Silver	N Type	1	3 GHz	Flange	500	Gold	50 Ohms	Nickel	Brass	Female Socket Jack	IP67 - Dust Tight Waterproof	Crimp	0.15 dB	-65 ░C	165 °C	Beryllium Copper	1000 VDC	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 41.14

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
