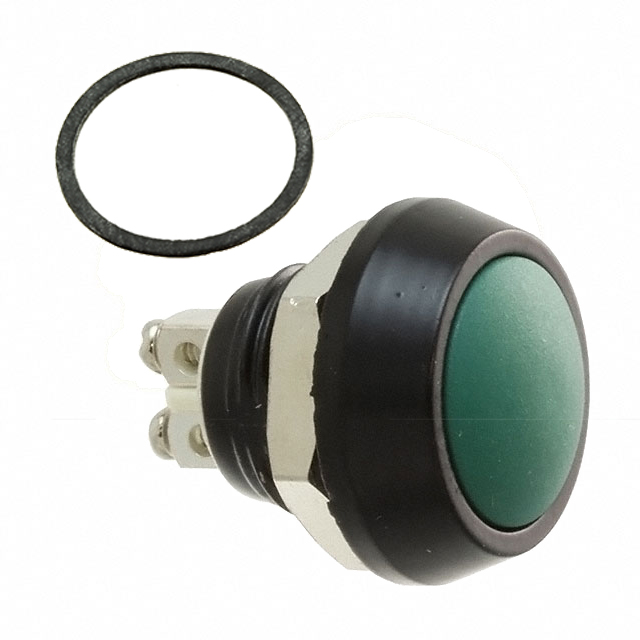

MMP0120/AGNS

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPST-NO 2A 36V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMP0120/AGNS

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPST-NO 2A 36V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMP0120/AGNS

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - DC	36 VDC

MMP0120 Series

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Actuator Type	Ingress Protection	Electrical Life	Current Rating (Amps)	Mechanical Life	Type	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Features
BULGIN LIMITED MMP0120/ABKS	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Black	Button Domed Round	IP65 - Dust Tight Water Resistant	200000 Cycles	2 A	1000000 Cycles	Standard	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/ABLS	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Blue	Button Domed Round	IP65 - Dust Tight Water Resistant	200000 Cycles	2 A	1000000 Cycles	Standard	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/NNBS	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Silver	Button Domed Round	IP65 - Dust Tight Water Resistant	200000 Cycles	2 A	500000 Cycles	Anti-Vandal	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/NNB67/S	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Silver	Button Domed Round	IP67 - Dust Tight Waterproof	200000 Cycles	2 A	500000 Cycles	Anti-Vandal	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/ABK67/S	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Black	Button Domed Round	IP67 - Dust Tight Waterproof	200000 Cycles	2 A	1000000 Cycles	Standard	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/SSS67/P	Solder Lug	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Silver	Button Domed Round	IP67 - Dust Tight Waterproof	200000 Cycles	2 A	500000 Cycles	Anti-Vandal	Off-Mom	No Marking	12 mm	Stainless Steel
BULGIN LIMITED MMP0120/NNB67/P	Solder Lug	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Silver	Button Domed Round	IP67 - Dust Tight Waterproof	200000 Cycles	2 A	500000 Cycles	Anti-Vandal	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/AGNS	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Green	Button Domed Round	IP65 - Dust Tight Water Resistant	200000 Cycles	2 A	1000000 Cycles	Standard	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/ABL67/S	Screw Terminal	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Blue	Button Domed Round	IP67 - Dust Tight Waterproof	200000 Cycles	2 A	1000000 Cycles	Standard	Off-Mom	No Marking	12 mm
BULGIN LIMITED MMP0120/NNBP	Solder Lug	55 °C	-25 °C	SPST-NO	36 VDC	Panel Mount Front	Silver	Button Domed Round	IP65 - Dust Tight Water Resistant	200000 Cycles	2 A	500000 Cycles	Anti-Vandal	Off-Mom	No Marking	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.13
		10	$ 12.20
		25	$ 11.50
		40	$ 11.16
		80	$ 10.67
		230	$ 9.97
		440	$ 9.56
		945	$ 9.10

Description

General part information

MMP0120 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front
