1241765-2
ActiveTE Connectivity AMP Connectors

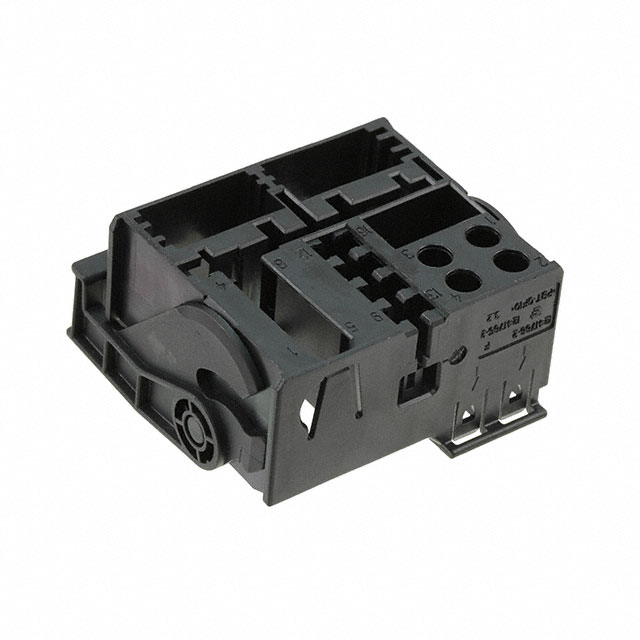

CONN RCPT HSG 12POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241765-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241765-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 12 |
| Number of Positions [custom] | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.36 | |
| 10 | $ 2.01 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.71 | |||
| 400 | $ 1.55 | |||
| 800 | $ 1.47 | |||
| 1200 | $ 1.45 | |||
1241765 Series
CONN RCPT HSG 12POS
| Part | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Contact Termination | Note | Color | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241765-2 | Female Socket | 4 | 12 | 8 | Receptacle | Crimp | Contacts Not Included | Black | Glass Filled, Nylon, Polyamide (PA) | Free Hanging (In-Line) |
Description
General part information
1241765 Series
12 (8 + 4 Power) Rectangular Connectors - Housings Receptacle Black
