S24B-PHDSS

Active

JST Sales America Inc.

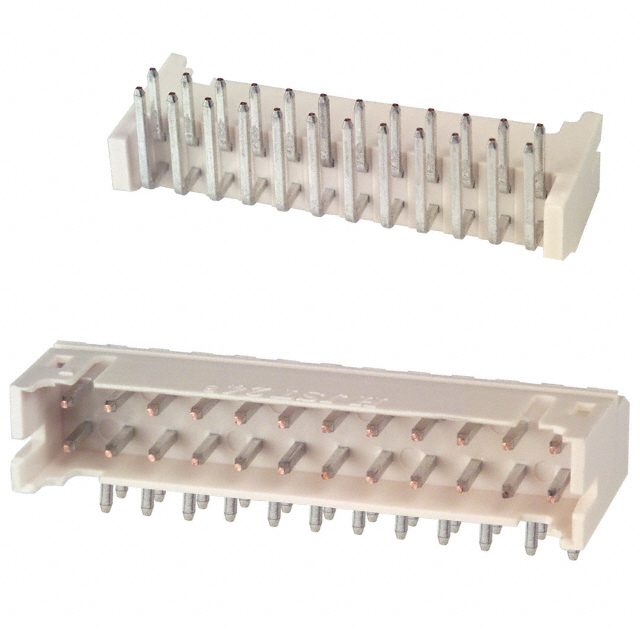

CONN HEADER R/A 24POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 24POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S24B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish - Post	Insulation Material	Fastening Type	Contact Type	Shrouding	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Row Spacing - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Insulation Height	Insulation Height	Voltage Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Color
JST Sales America Inc. S24B-PHDSS	Copper Alloy	3 A	0.079 in	2 mm	Square	Header	0.114 in	2.9 mm	24	Tin	Glass Filled Nylon Polyamide (PA)	Detent Lock	Male Pin	Shrouded - 4 Wall	All	Through Hole Right Angle	-25 °C	85 °C	Solder	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	0.197 in	5 mm	250 VDC	0.118 in	3 mm	2	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
