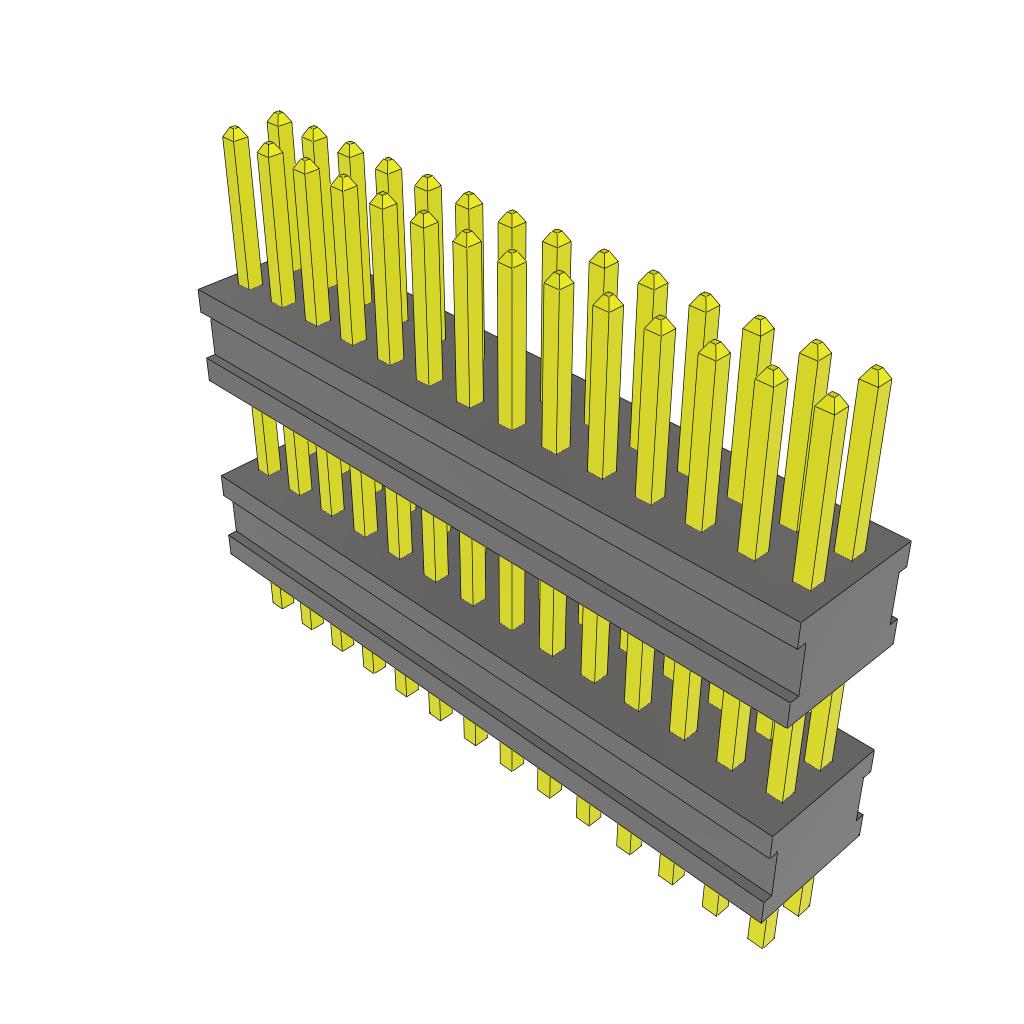

FW-14-02-G-D-310-155

Active

Samtec Inc.

CONN HDR 28POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFW Series Other Related Documents 01 FW Datasheet +2

FW-14-02-G-D-310-155

Active

Samtec Inc.

CONN HDR 28POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsFW Series Other Related Documents 01 FW Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FW-14-02-G-D-310-155

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.54 in
Length - Overall Pin [x]	13.716 mm
Length - Post (Mating) [x]	0.155 in
Length - Post (Mating) [x]	3.937 mm
Length - Stack Height [x]	0.31 in
Length - Stack Height [x]	7.874 mm
Length - Tail	1.905 mm
Length - Tail	0.075 in
Mounting Type	Through Hole
Number of Positions	28
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

FW-14-02 Series

Part	Number of Rows	Termination	Length - Tail	Length - Tail	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin
Samtec Inc. FW-14-02-F-D-213-122	2	Solder	1.905 mm	0.075 in	Black	3 Áin	0.076 Ám	0.41 in	10.414 mm	0.05 in	1.27 mm	3.099 mm	0.122 in	28	Through Hole	5.41 mm	0.213 in	1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-L-D-200-156	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám	0.431 in	10.947 mm	0.05 in	1.27 mm	3.962 mm	0.156 in	28	Through Hole			1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-L-D-500-075	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám	0.65 in	16.51 mm	0.05 in	1.27 mm	1.905 mm	0.075 in	28	Through Hole	12.7 mm	0.5 in	1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-L-D-300-065	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám	0.44 "	11.176 mm	0.05 in	1.27 mm	1.651 mm	0.065 in	28	Through Hole	7.62 mm	0.3 in	1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-F-D-312-160	2	Solder	1.905 mm	0.075 in	Black	3 Áin	0.076 Ám	0.547 "	13.894 mm	0.05 in	1.27 mm	4.064 mm	0.16 in	28	Through Hole	7.925 mm	0.312 in	1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-G-D-455-075	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám			0.05 in	1.27 mm	1.905 mm	0.075 in	28	Through Hole	11.557 mm	0.455 in	1.27 mm	0.05 in	Gold	0.605 "	15.367 mm
Samtec Inc. FW-14-02-G-D-310-155	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám	0.54 in	13.716 mm	0.05 in	1.27 mm	3.937 mm	0.155 in	28	Through Hole	7.874 mm	0.31 in	1.27 mm	0.05 in	Gold
Samtec Inc. FW-14-02-G-D-275-230	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám	0.58 in		0.05 in	1.27 mm	5.842 mm	0.23 in	28	Through Hole	6.985 mm	0.275 in	1.27 mm	0.05 in	Gold		14.732 mm
Samtec Inc. FW-14-02-G-D-300-230	2	Solder	1.905 mm	0.075 in	Black	10 Áin	0.25 Ám			0.05 in	1.27 mm	5.842 mm	0.23 in	28	Through Hole	7.62 mm	0.3 in	1.27 mm	0.05 in	Gold	0.605 "	15.367 mm
Samtec Inc. FW-14-02-F-D-660-065	2	Solder	1.905 mm	0.075 in	Black	3 Áin	0.076 Ám			0.05 in	1.27 mm	1.651 mm	0.065 in	28	Through Hole	16.764 mm	0.66 in	1.27 mm	0.05 in	Gold	0.8 in	20.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	32	$ 6.14
