8280-6SG-519

Active

Conxall/Switchcraft

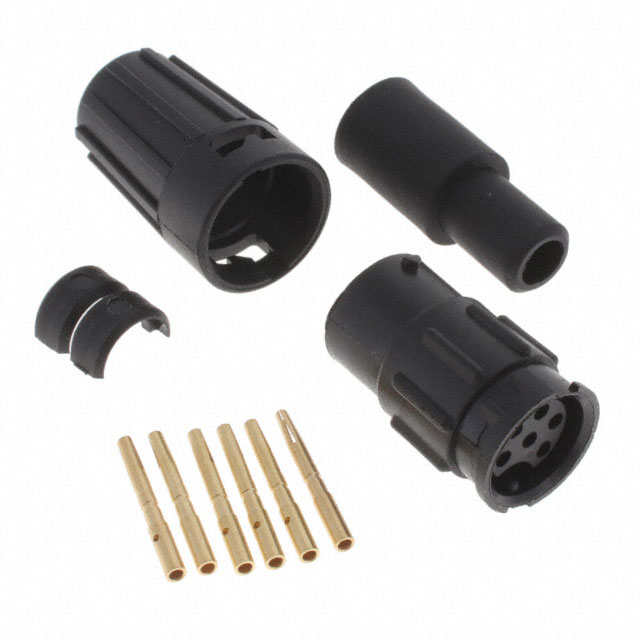

CONN RCPT FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8280-6SG-519	8280-6SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [diameter]	0.21 in	0.21 in
Cable Opening [Max] [diameter]	5.33 mm	5.33 mm
Cable Opening [Min] [diameter]	0.19 in	0.19 in
Cable Opening [Min] [diameter]	4.83 mm	4.83 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

CONN RCPT FMALE 6POS GOLD CRIMP

Part	Primary Material	Voltage Rating	Current Rating (Amps)	Ingress Protection	Connector Type	Features	Termination	Color	Backshell Material, Plating	Applications	Number of Positions	Shielding	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Contact Finish - Mating	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-6SG-3DC	Plastic	600 V	Varies by Wire Gauge	Weathertight	Receptacle, Female Sockets	Backshell	Crimp	Black	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	6	Unshielded	Keyed	-40 °C	115 °C	Brass	Bayonet Lock	Gold	Free Hanging (In-Line)
Conxall/Switchcraft 8280-6SG-311	Plastic	600 V	Varies by Wire Gauge	Weathertight	Receptacle, Female Sockets	Backshell	Crimp	Black	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	6	Unshielded	Keyed	-40 °C	115 °C	Brass	Bayonet Lock	Gold	Free Hanging (In-Line)	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8280-6SG-519	Plastic	600 V	Varies by Wire Gauge	Weathertight	Receptacle, Female Sockets	Backshell	Crimp	Black	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	6	Unshielded	Keyed	-40 °C	115 °C	Brass	Bayonet Lock	Gold	Free Hanging (In-Line)				0.21 in	0.19 in	4.83 mm	5.33 mm
