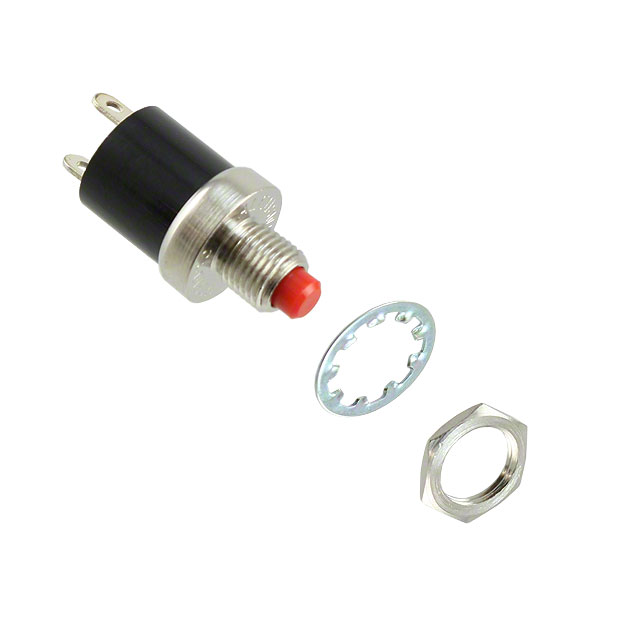

MSP103C04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSP103C04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSP103C04 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3 A |
| Electrical Life | 5000 Steps |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.37 | |
| 10 | $ 6.36 | |||
| 25 | $ 6.00 | |||
| 50 | $ 5.74 | |||
| 100 | $ 5.49 | |||
| 300 | $ 5.11 | |||
| 500 | $ 4.95 | |||
| 1000 | $ 4.73 | |||
Description
General part information
MSP103 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Rear
