43-02639

Active

Amphenol CONEC

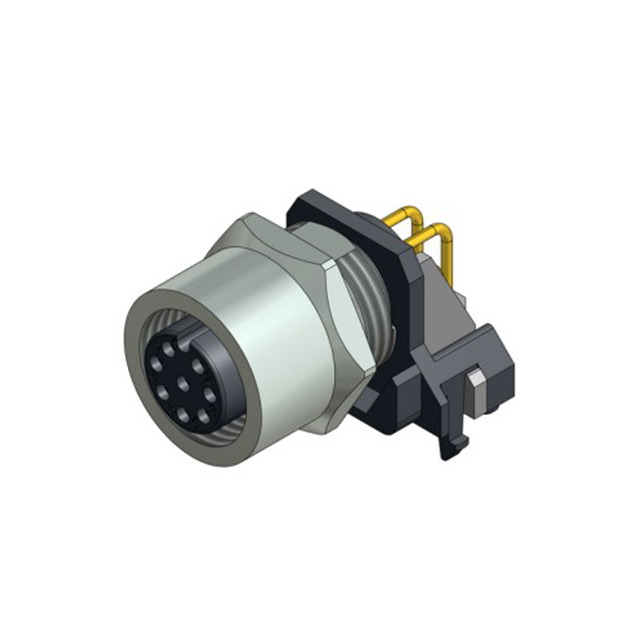

SENSOR CONN, M12, R/A RCPT, 8POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, R/A RCPT, 8POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-02639

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	2 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Contact Finish - Mating	Contact Material	Orientation	Color	Ingress Protection	Termination	Primary Material	Features	Current Rating (Amps)	Shell Finish	Insert Material	Mounting Type	Shell Size - Insert	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Voltage Rating	Mounting Feature	Shielding	Material Flammability Rating
Amphenol CONEC 43-02638	Gold	Copper Zinc	A	Silver	IP67 - Dust Tight Waterproof	Solder	Metal	Board Guide Board Lock	2 A	Nickel	Nylon Polyamide (PA)	Panel Mount Right Angle Through Hole	M12-8	Female Sockets Plug	8	-30 ░C	85 °C	Copper Zinc	30 VDC	Bulkhead	Unshielded	UL94 V-0
Amphenol CONEC 43-02639	Gold	Copper Zinc	A	Silver	IP67 - Dust Tight Waterproof	Solder	Metal	Board Guide Board Lock	2 A	Nickel	Nylon Polyamide (PA)	Panel Mount Right Angle Through Hole	M12-8	Female Sockets Plug	8	-30 ░C	85 °C	Copper Zinc	30 VDC	Bulkhead	Shielded	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Solder
