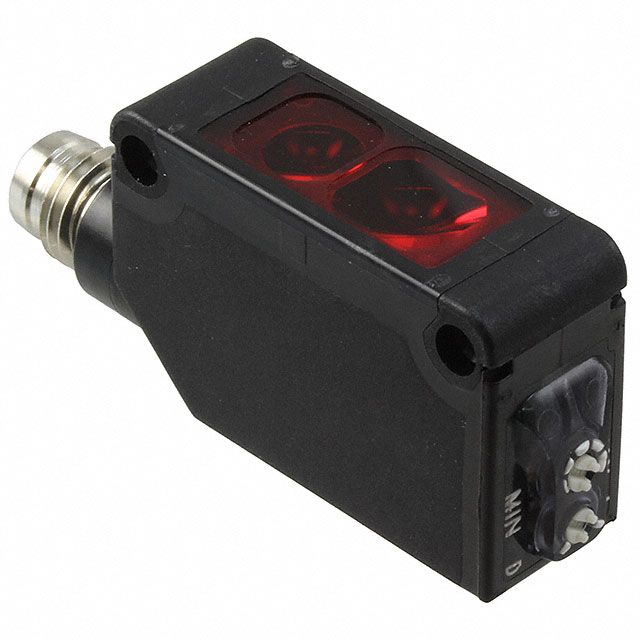

CX-423-Z

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE NPN OPEN COL

Deep-Dive with AI

Search across all available documentation for this part.

CX-423-Z

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE NPN OPEN COL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CX-423-Z

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	860 nm
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	NPN - Open Collector
Response Time	1 ms
Sensing Distance [Max]	11.811 in
Sensing Distance [Max]	300 mm
Sensing Distance [Min]	2.756 "
Sensing Distance [Min]	70 mm
Sensing Method	Reflective, Diffuse
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

CX-423 Series

Part	Response Time	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Cable Length	Cable Length	Light Source	Light Source	Output Configuration	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]
Panasonic Industrial Automation Sales CX-423-C5	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	NPN - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-J	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	NPN - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-P-C05	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	PNP - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-Z	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	NPN - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-P-J	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	PNP - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-P-Z	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	PNP - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm
Panasonic Industrial Automation Sales CX-423-P	1 ms	IP67	12 V	24 V	Diffuse Reflective	78.74 in	2 m	860 nm	Infrared	PNP - Open Collector	Cable	55 °C	-25 °C	2.756 "	70 mm	11.811 in	300 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 133.00
		10	$ 120.91

Description

General part information

CX-423 Series

Reflective, Diffuse Optical Sensor 2.756" ~ 11.811" (70mm ~ 300mm) NPN - Open Collector

Documents

Technical documentation and resources

No documents available
